Tail Lamp Control Module Replacement

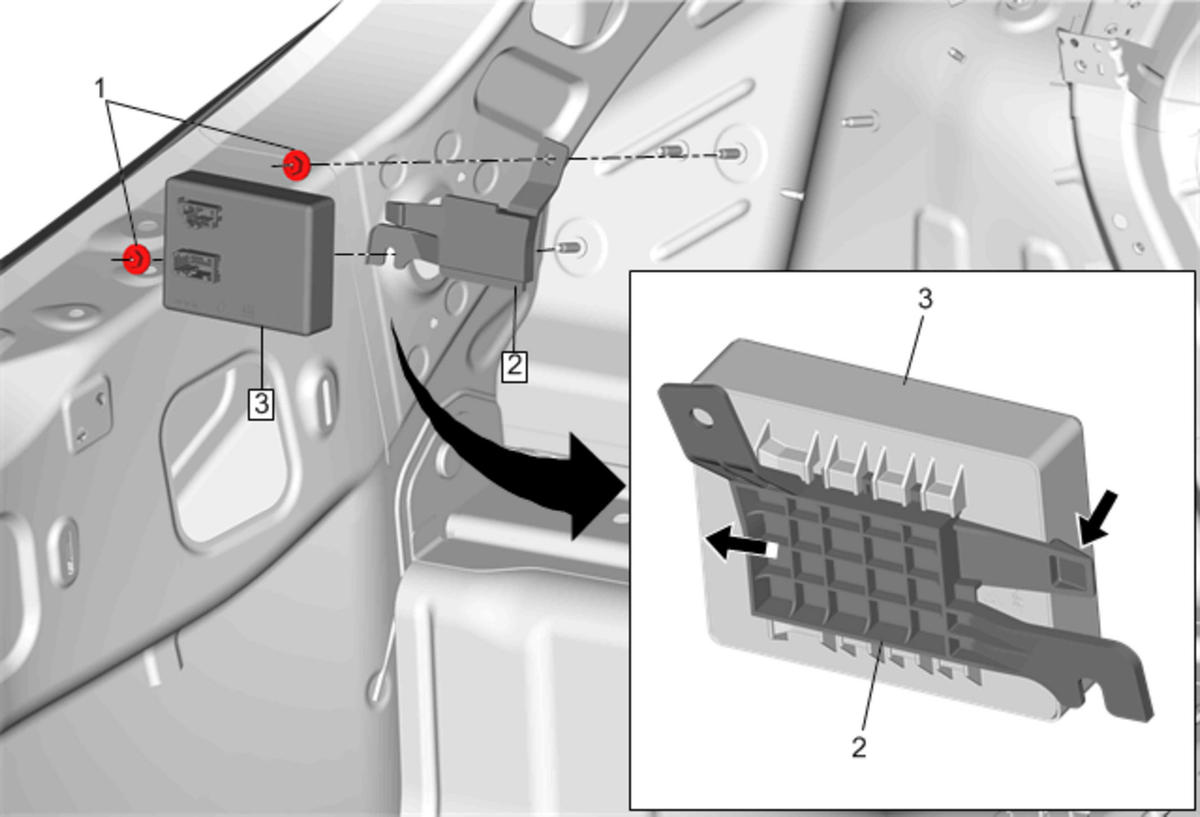

Fig 1: Tail Lamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Quarter Lower Rear Trim Panel-Left Side - Remove - Quarter Lower Rear Trim Panel Replacement
1	Tail Lamp Control Module Nut CAUTION: Fastener Caution Tighten 8 N.m (71 lb in)
2	Tail Lamp Control Module Bracket Procedure Slide the module bracket and remove it from the module.
3	Tail Lamp Control Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure:Control Module References
