X211 Body Harness to Instrument Panel Harness

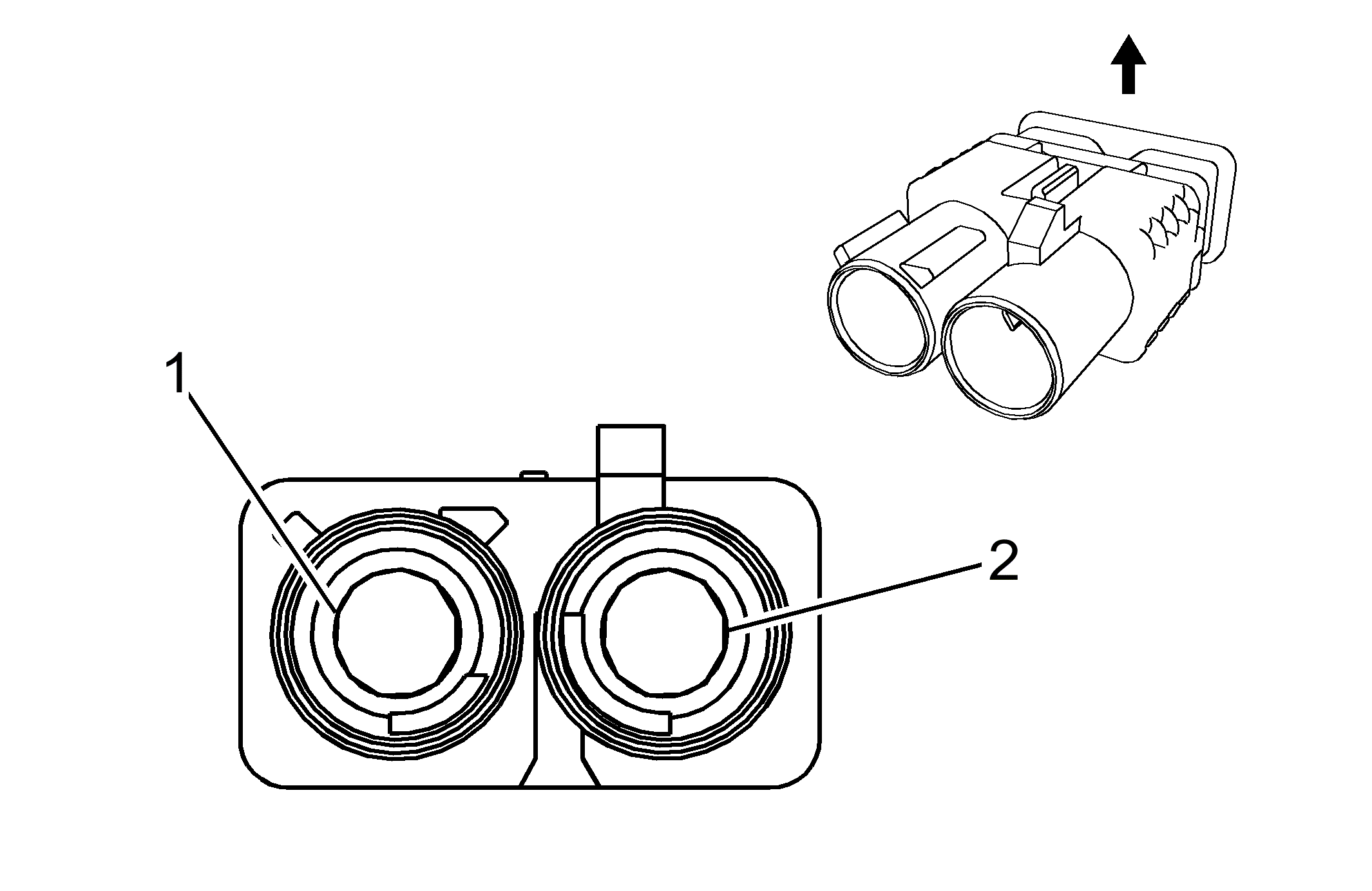

Connector Part Information Harness Type: Body COAX OEM Connector: 13583911 Service Connector: Service by Cable Assembly - See Part Catalog Description: 2-Way F Coax Type (PU)	Connector Part Information Harness Type: Instrument Panel COAX OEM Connector: Not Available Service Connector: Service by Cable Assembly - See Part Catalog Description: 2-Way M

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	-	COAX	-	I	-	(GPS only) Coaxial Antenna GPS Signal	-	-	COAX	-	I	-
2	-	COAX	-	I	-	(Cell only) Coaxial Antenna Cell Phone Signal	-	-	COAX	-	I	-
