Ignition and Start Switch Replacement

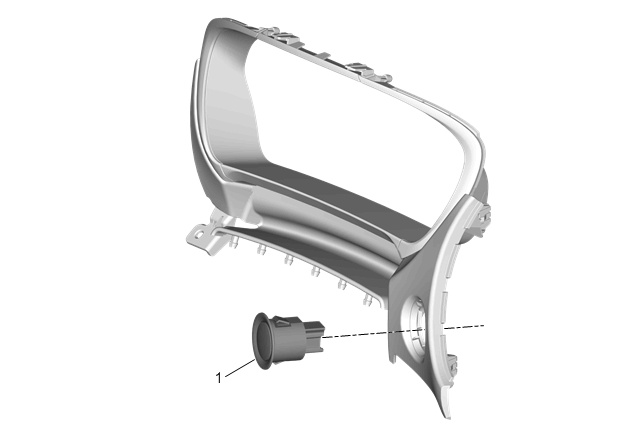

Fig 1: Ignition and Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement
1	Ignition and Start Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the ignition and start switch from the trim piece.

Callout

Component Name

Ignition and Start Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the ignition and start switch from the trim piece.
