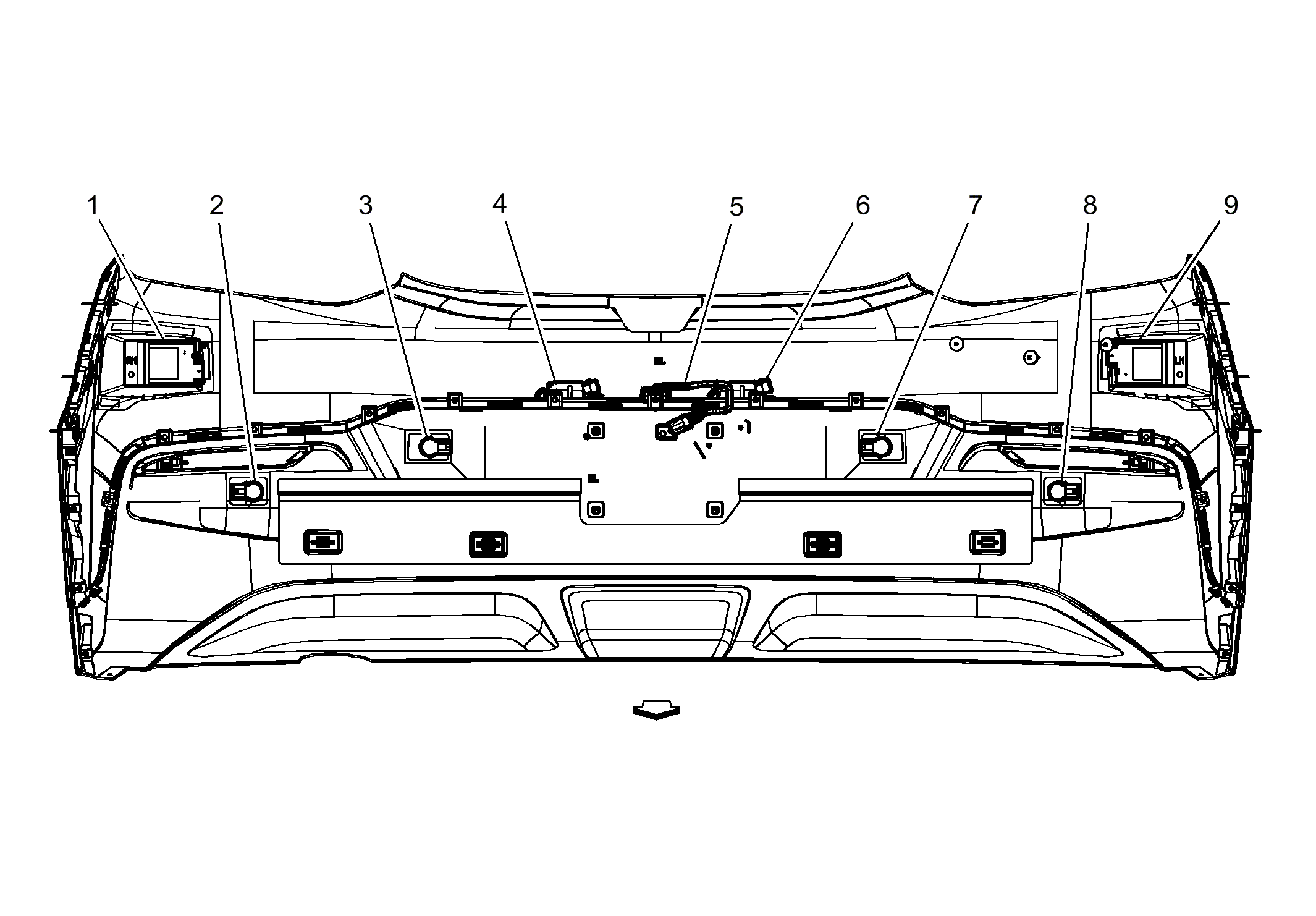

Rear of Vehicle Components (2 of 3)
Rear of Vehicle Components (2 of 3)
| Items |
|---|
| 1: B218R Side Object Sensor Module - Right (UFG) B218R Side Object Sensor Module - Right |
| 2: B78H Rear Object Sensor - Right Outer (UD7) B78H Rear Object Sensor - Right Outer |
| 3: B78F Rear Object Sensor - Right Middle (UD7) B78F Rear Object Sensor - Right Middle |
| 4: E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 5: B87 Rearview Camera (UVC) B87 Rearview Camera |
| 6: E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 7: B78E Rear Object Sensor - Left Middle (UD7) B78E Rear Object Sensor - Left Middle |
| 8: B78G Rear Object Sensor - Left Outer (UD7) B78G Rear Object Sensor - Left Outer |
| 9: B218L Side Object Sensor Module - Left (UFG) B218L Side Object Sensor Module - Left |
