A28 Hybrid/EV Battery Contactor Assembly - Front View

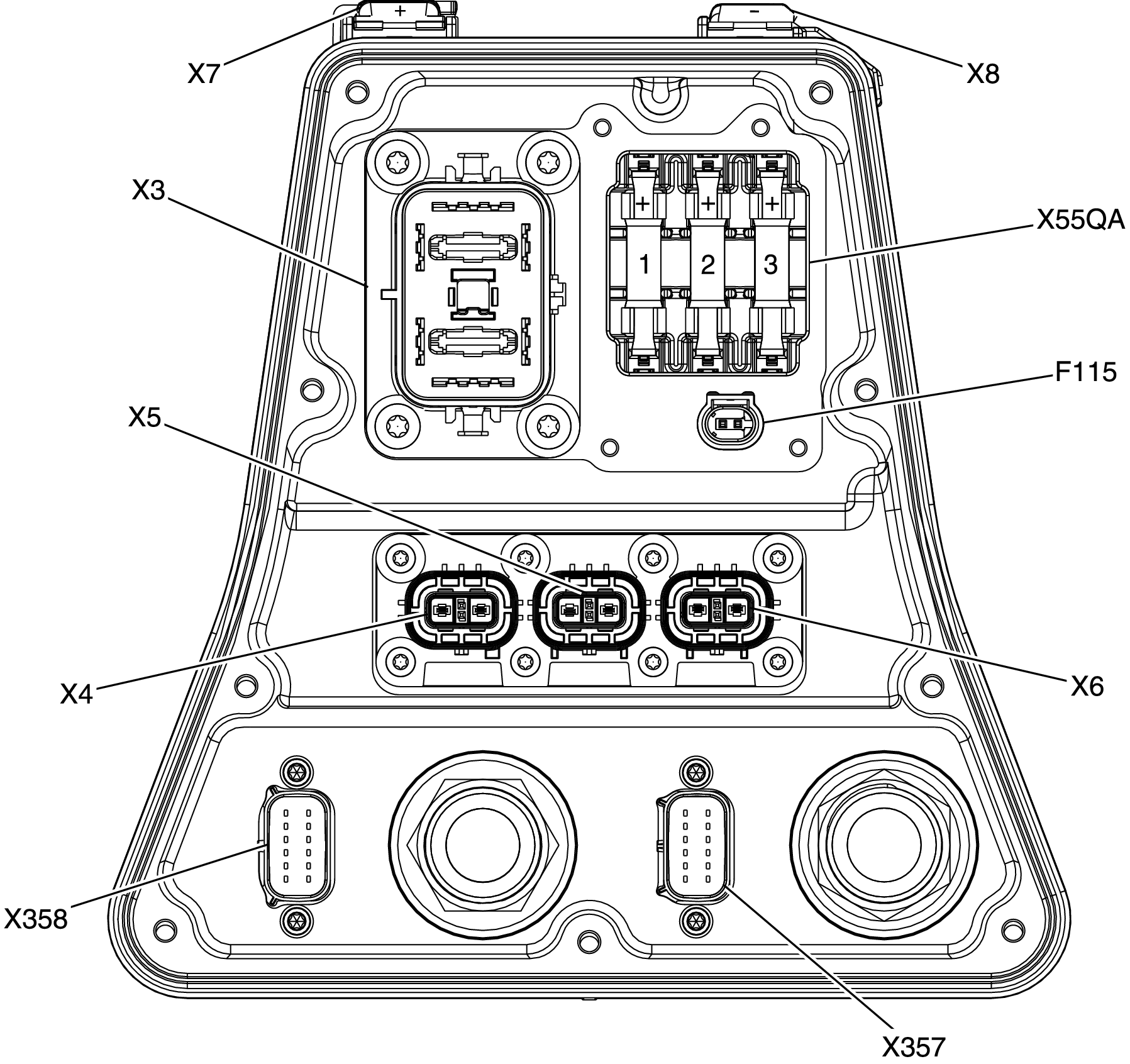

Fig 1: A28 Hybrid/EV Battery Contactor Assembly - Front View

Courtesy of GENERAL MOTORS COMPANY

A28 HYBRID/EV BATTERY CONTACTOR ASSEMBLY FUSE IDENTIFICATION

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F1HA	F1	F1HA	40A	G1 A/C Compressor
F2HA	F2	F2HA	15A	K1 14V Power Module T18 Battery Charger
F3HA	F3	F3HA	30A	K10 Coolant Heater Control Module
