Instrument Panel Switch Trim Plate Replacement

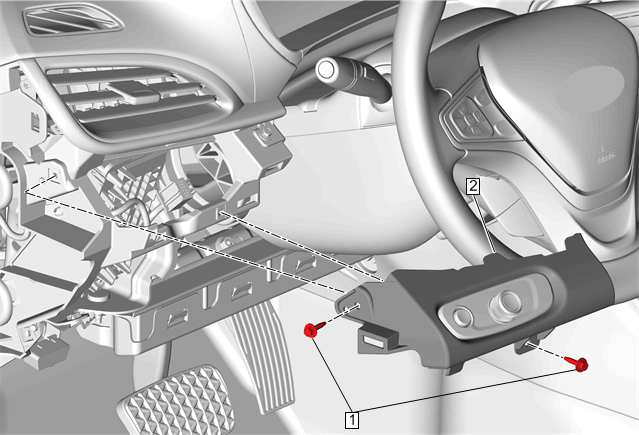

Fig 1: Instrument Panel Switch Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement
1	Instrument Panel Switch Trim Plate Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Switch Trim Plate Procedure Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Instrument Panel Switch Trim Plate Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Switch Trim Plate

Procedure
