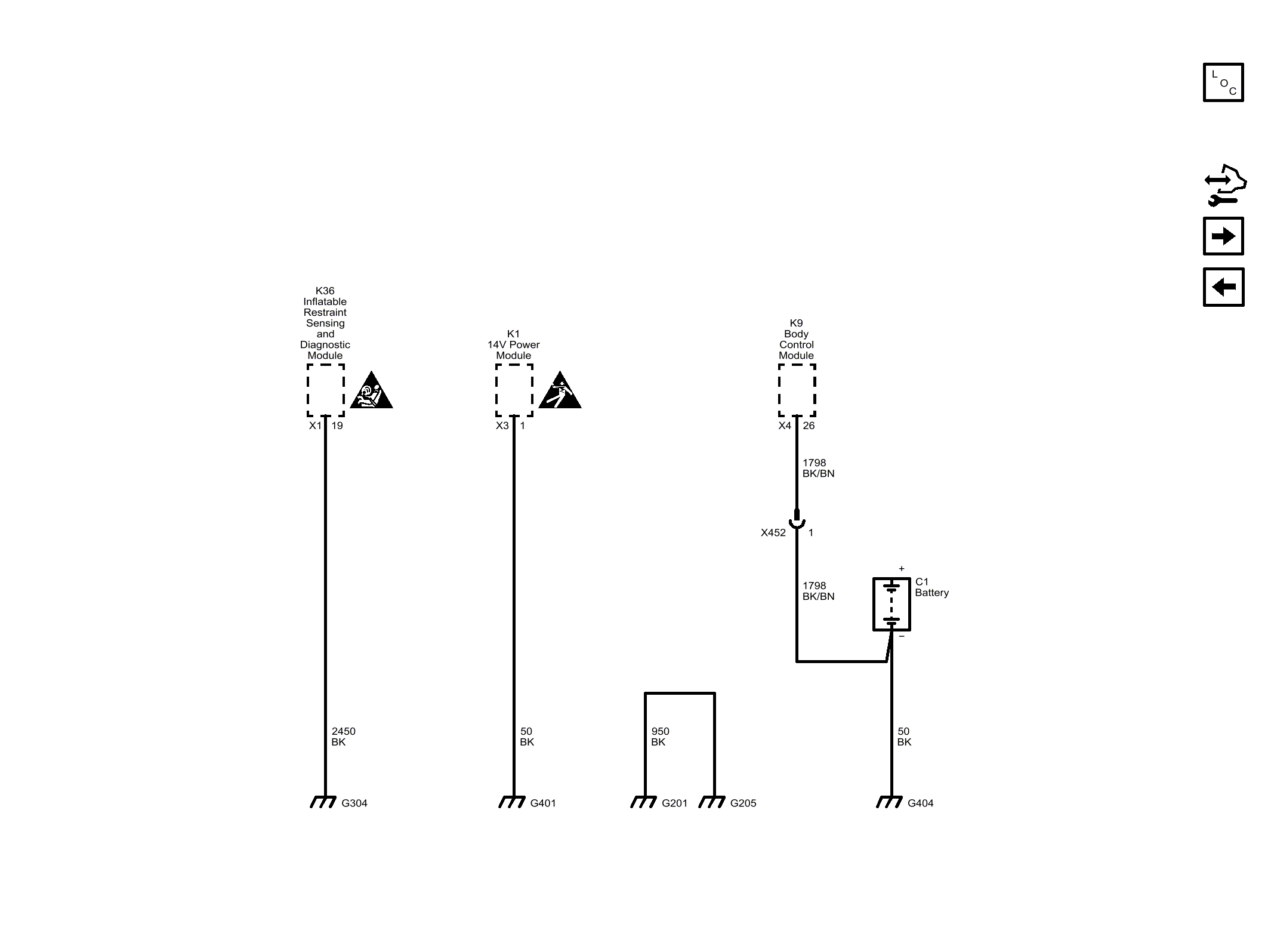

Home >> Chevrolet >> 2016 >> Volt LT >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Wiring Harness Routing Diagrams And Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Ground Distribution Wiring Schematics >> G201, G205, G304, G401 and G404
