Rear Side Door Armrest Pull Cup Bracket Replacement

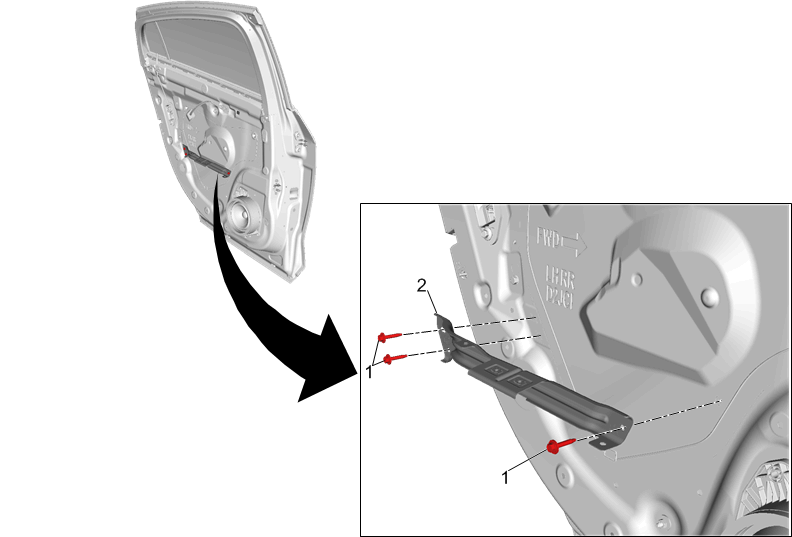

| Callout | Component Name |
|---|---|
| Preliminary Procedure Refer to Rear Side Door Trim Replacement |
|
| 1 | Rear Side Door Armrest Pull Cup Bracket Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Side Door Armrest Pull Cup Bracket Procedure Unclip the wiring harness from the bracket. |
