Instrument Panel Trim Plate Applique Replacement - Right Side: Overview

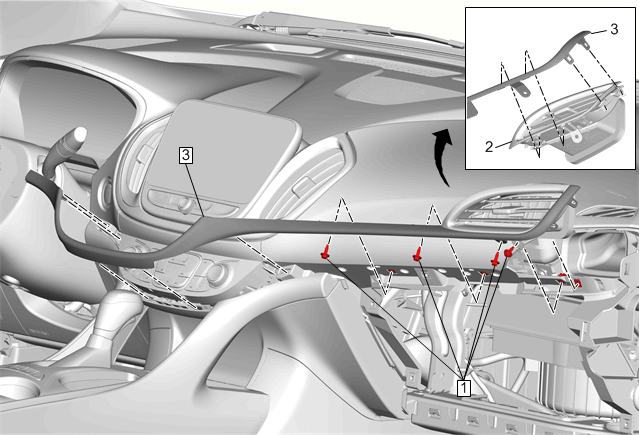

Fig 1: Instrument Panel Trim Plate Applique - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Compartment Replacement
1	Instrument Panel Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Outer Air Outlet - Right Side Procedure Use a flat bladed plastic trim tool. Release the plastic retaining tabs. Transfer components as necessary.
3	Instrument Panel Trim Plate Applique - Right Side
