Air Inlet Grille Panel Extension Replacement
Air Inlet Grille Panel Extension Replacement

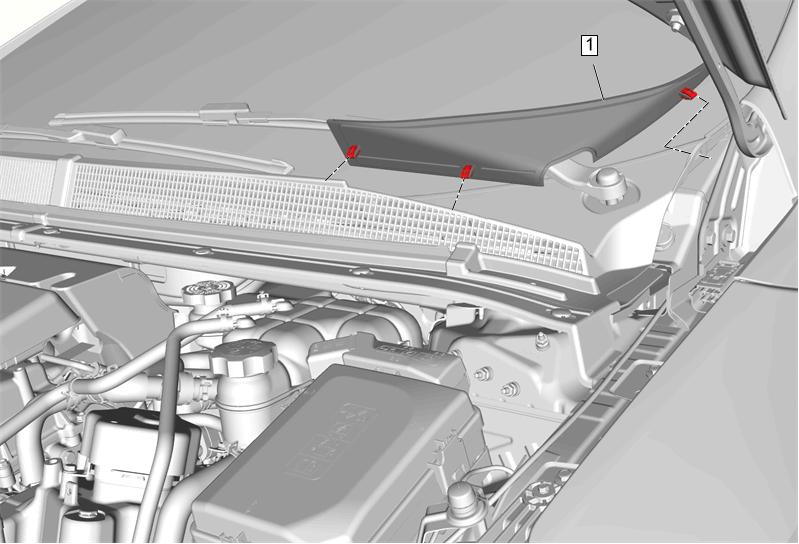

Fig 1: Air Inlet Grille Panel Extension
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Air Inlet Grille Panel Extension
Procedure
Grasp the extension and disengage the tab from the rear edge of the fender and rear edge of the air inlet panel.
