Rear Side Door Weatherstrip Replacement - Body Side

Preliminary Procedures

1. Center Pillar Upper Trim Panel Replacement
2. Body Lock Pillar Upper Trim Panel Replacement

Procedure

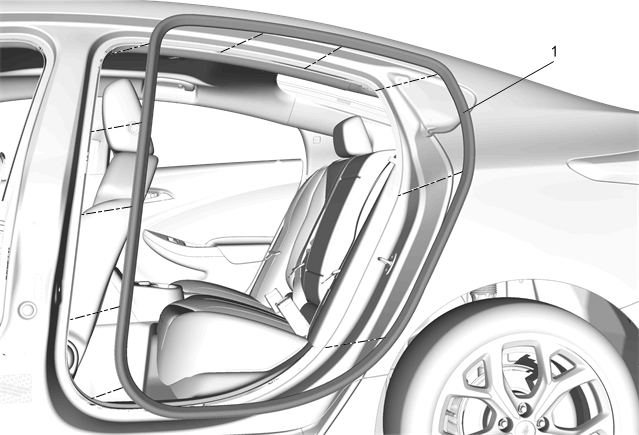

1. Starting in the center bottom, pull the weatherstrip upward and away from the pinch-weld flange.
2. When installing start in the left upper corner of the pinch-weld flange, push inward on the flange until fully seated.
3. Inspect the door for proper operation.
