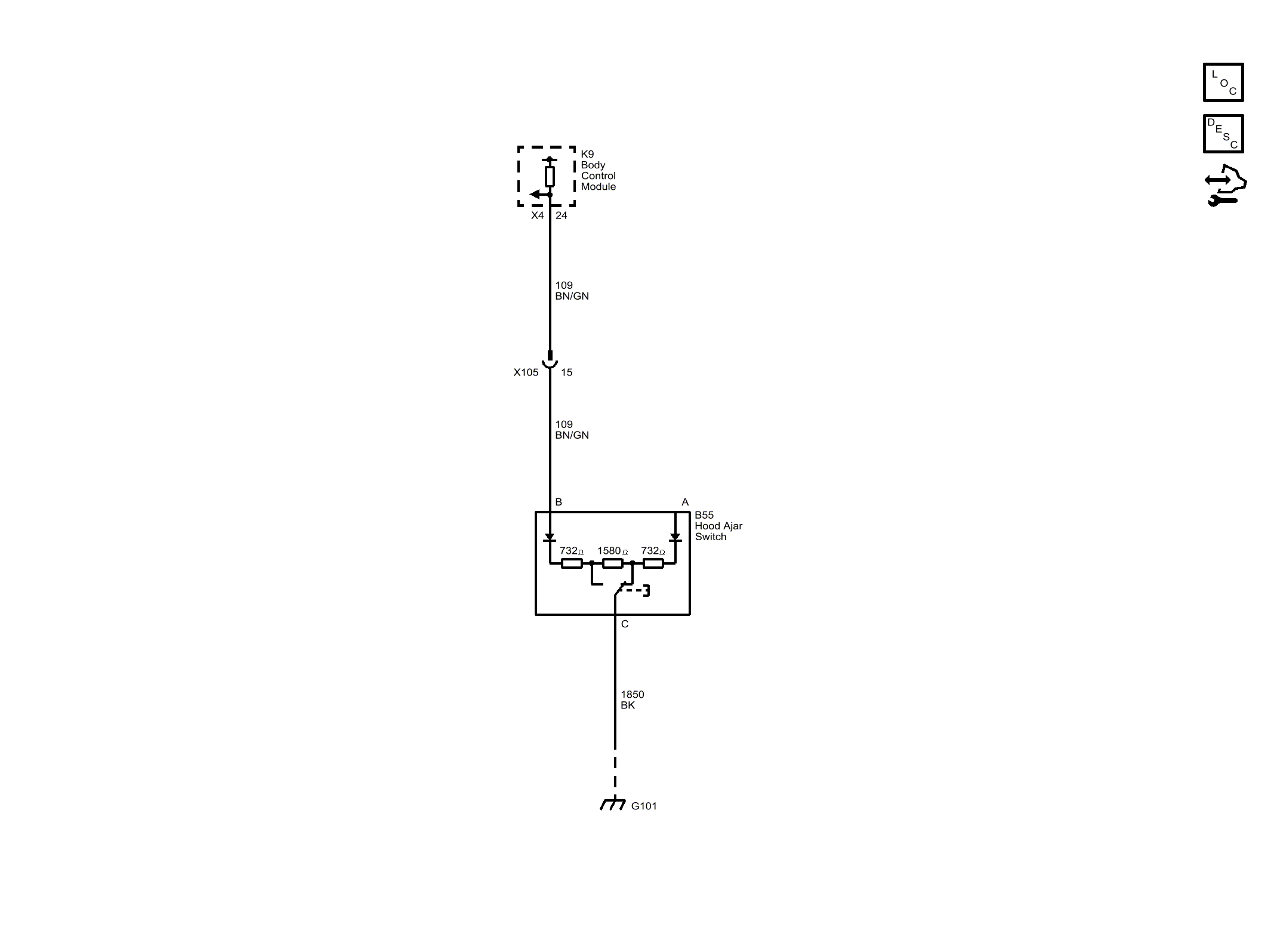

Home >> Chevrolet >> 2016 >> Trax LT, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Hood Latch Wiring Schematics (Trax) >> Hood Latch (Trax)
