Air Temperature, Turn Signal, and Driver Information Center (Trax)

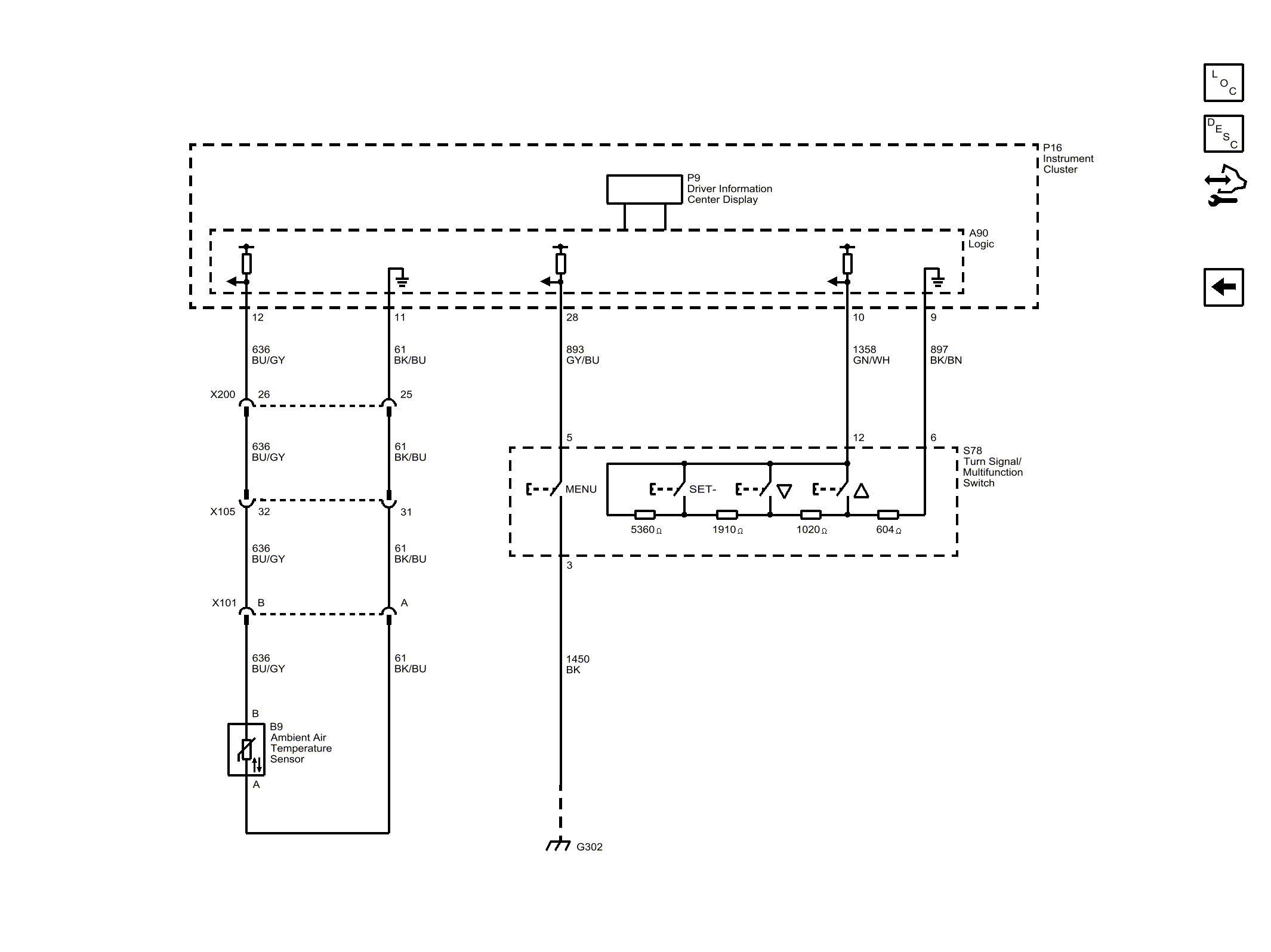

Fig 1: Air Temperature, Turn Signal, and Driver Information Center (Trax)

GM3989192

Courtesy of GENERAL MOTORS COMPANY
