Input Shaft and Planetary Assembly Installation
Input Shaft and Planetary Assembly Installation

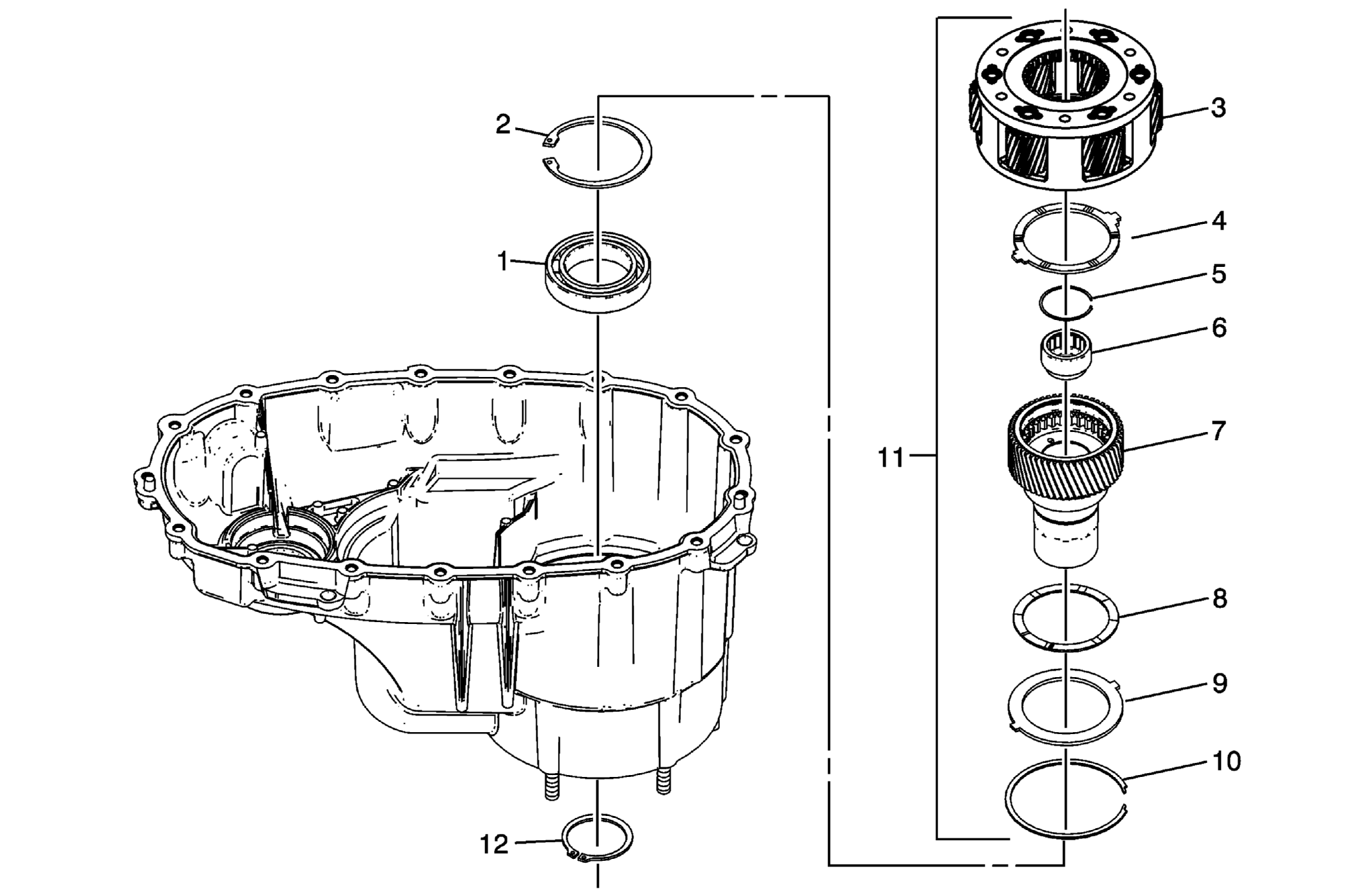

| Callout | Component Name |
|---|---|
| 1 | Transfer Case Input Shaft Bearing Assembly |
| 2 | Transfer Case Input Shaft Inner Retaining Ring |
| 3 | Transfer Case High/Low Planetary Carrier Assembly |
| 4 | Transfer Case Planetary Carrier Sun Gear Thrust Washer |
| 5 | Transfer Case Input Shaft Pilot Bearing Retaining Ring |
| 6 | Transfer Case Input Shaft Pilot Bearing Assembly |
| 7 | Transfer Case Input Shaft |
| 8 | Transfer Case Planetary Carrier Sun Gear Thrust Washer |
| 9 | Transfer Case High/Low Locking Plate |
| 10 | Transfer Case High/Low Planetary Carrier Retaining Ring |
| 11 | Transfer Case Input Shaft/Planetary Assembly |
| 12 | Transfer Case Input Shaft Bearing Outer Retaining Ring |
