Steering Wheel Spoke Cover Replacement (RH with Radio Control Switch)

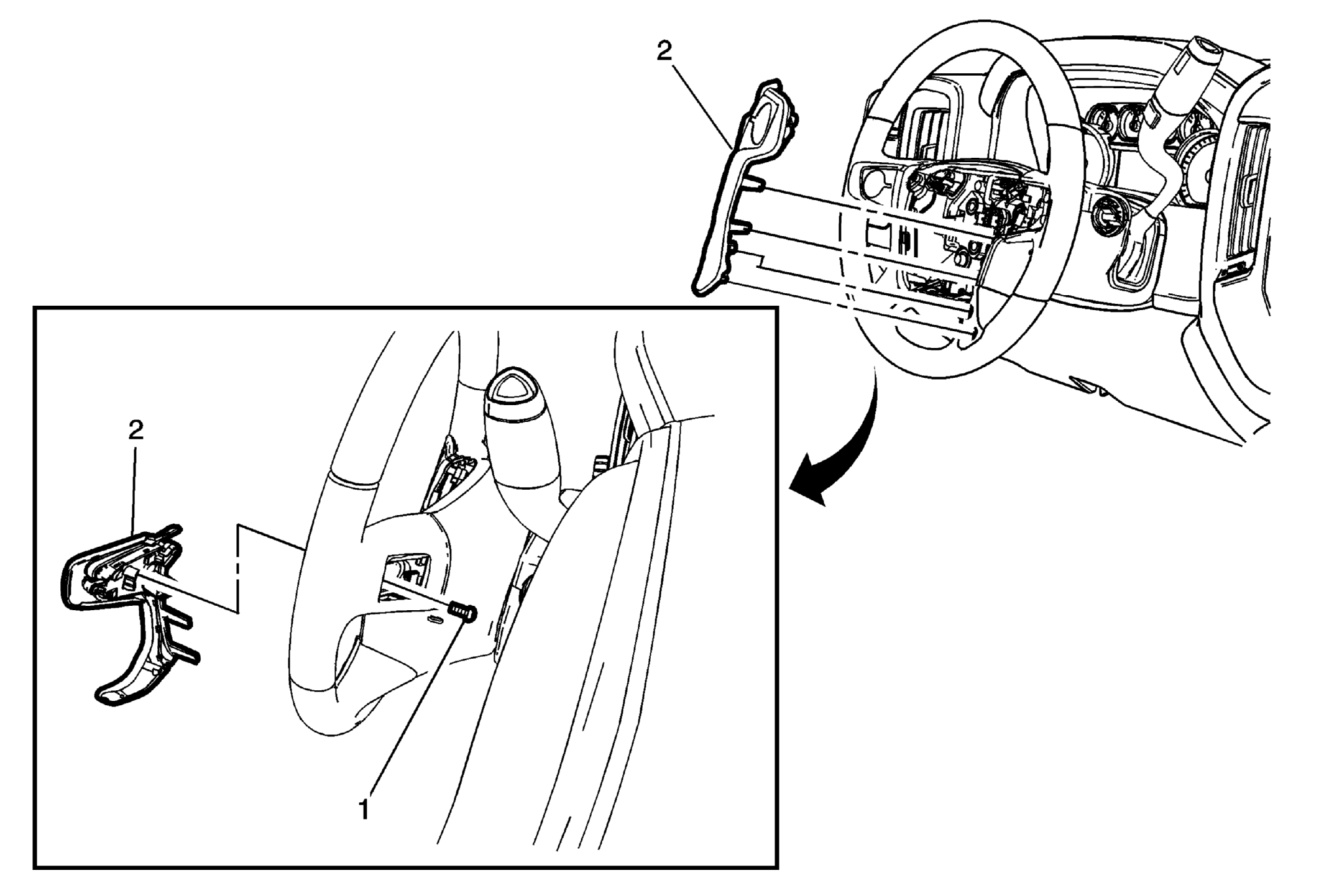

Fig 1: Steering Wheel Spoke Cover (RH with Radio Control Switch)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Wheel Airbag Replacement (Chevrolet / GMC)Steering Wheel Airbag Replacement (Cadillac) Radio Control Switch Replacement - Rear
1	Steering Wheel Spoke Cover Fastener CAUTION: Refer to Fastener Caution .
2	Steering Wheel Spoke Cover Procedure Use the appropriate tool to gently release the retaining tabs on the cover. Disconnect the electrical connector. Transfer components as necessary. NOTE: Gently release the tabs one by one, using care to avoid snapping any tabs off.

Callout

Component Name

Preliminary Procedures

Steering Wheel Spoke Cover Fastener

CAUTION:

Steering Wheel Spoke Cover

Procedure

NOTE:

Gently release the tabs one by one, using care to avoid snapping any tabs off.
