Airbag Front Passenger Presence Module Replacement

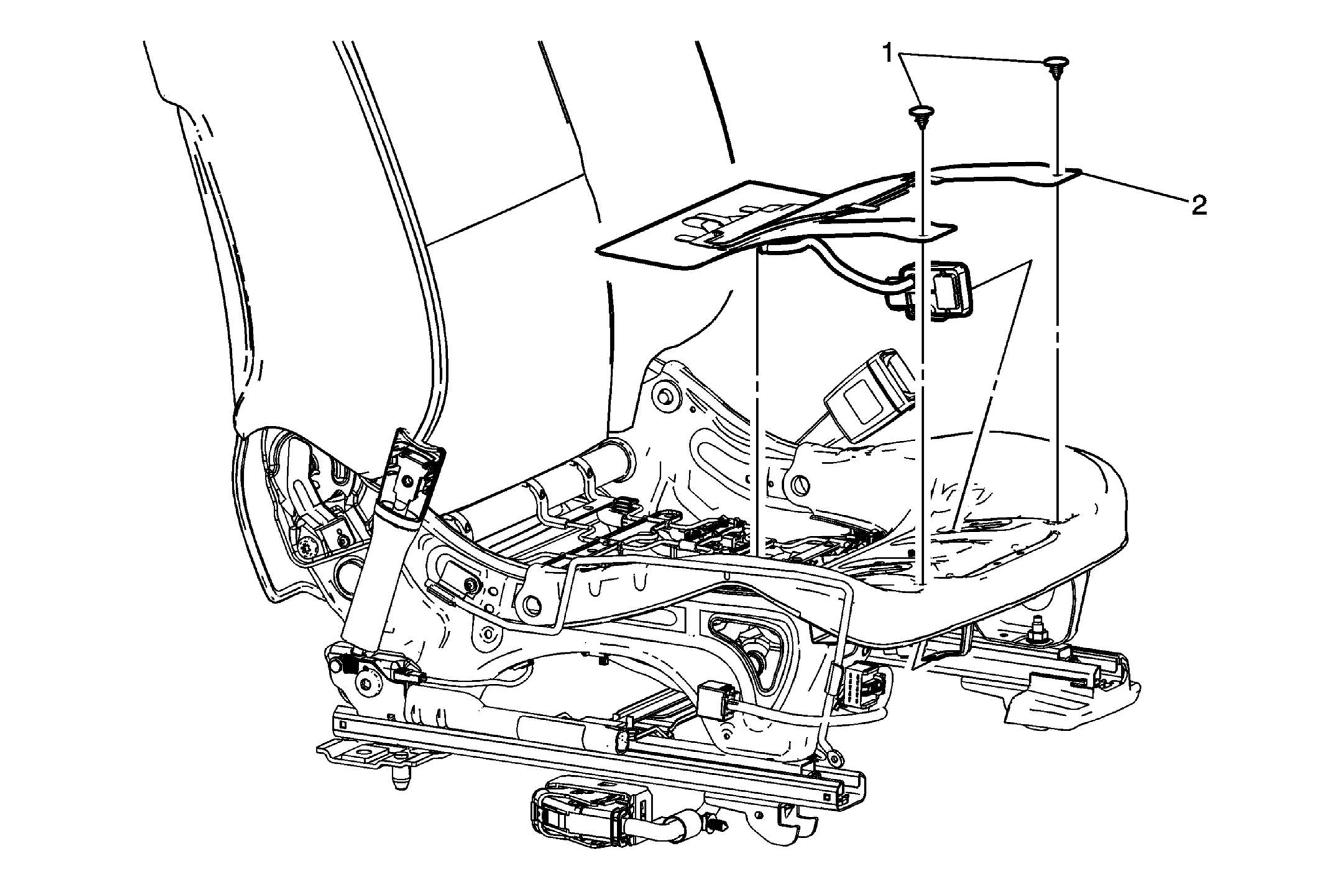

Fig 1: Inflatable Restraint Front Passenger Presence Module
GM3271907Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

Preliminary Procedure

  1. Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
  2. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1 Inflatable Restraint Front Passenger Presence Module Retainer (Qty: 2)
2 Inflatable Restraint Front Passenger Presence Module

Procedure

  1. Unhook the module from the bracket on the underside of seat frame and push up through seat pan.
  2. Disconnect and remove the sensor and module from the seat pan.
  3. Program the inflatable restraint passenger presence system after replacement. Refer to Passenger Presence System Rezeroing .
