Speed Sensors and Internal Mode Switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

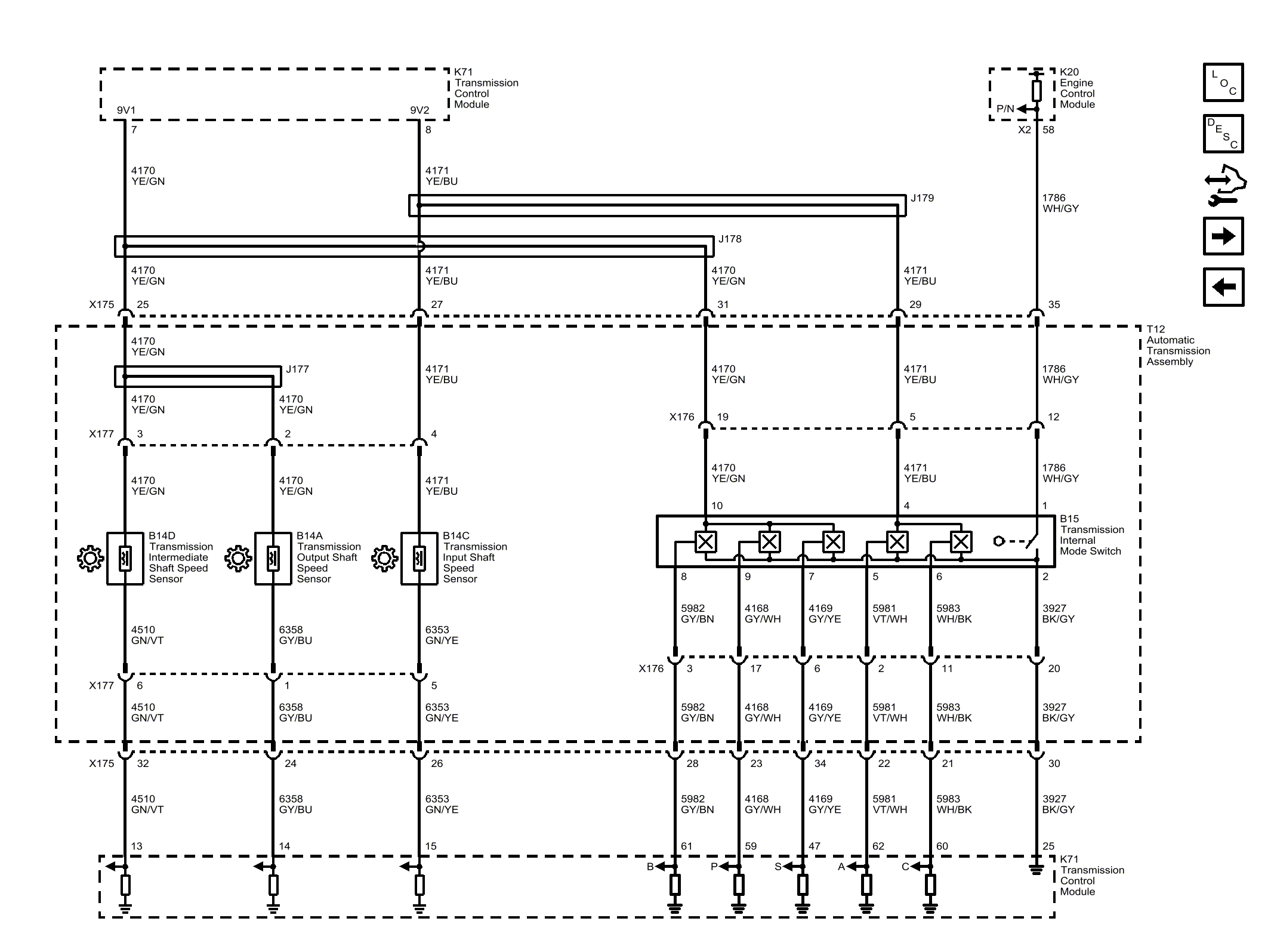

Fig 1: Speed Sensors and Internal Mode Switch
GM3721411Courtesy of GENERAL MOTORS COMPANY
