Second Row Seat Harness Routing

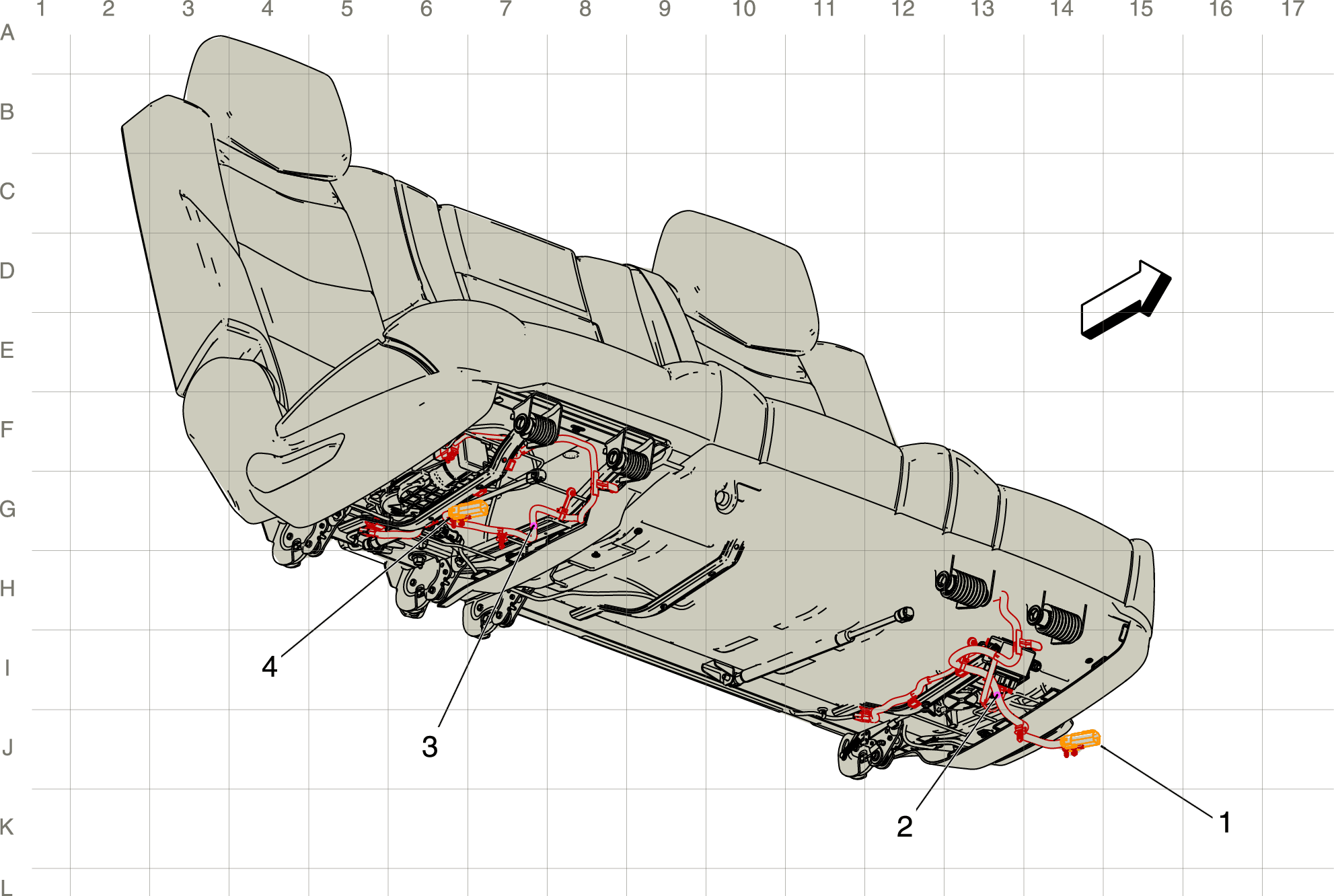

Fig 1: Second Row Seat Harness Routing
GM3802653Courtesy of GENERAL MOTORS COMPANY
Items
1: X308 (ATN, ATT or KA6) X308 Body Harness to 2nd Row Seat Jumper Harness (ATN/ATT/KA6)
2: J357 (ATN or ATT with KA6)
3: J366 (ATN or ATT with KA6)
4: X378 (ATN or ATT) X378 Body Harness to 2nd Row Seat Jumper Harness (ATN/ATT)
