Right Rear Door Harness Routing

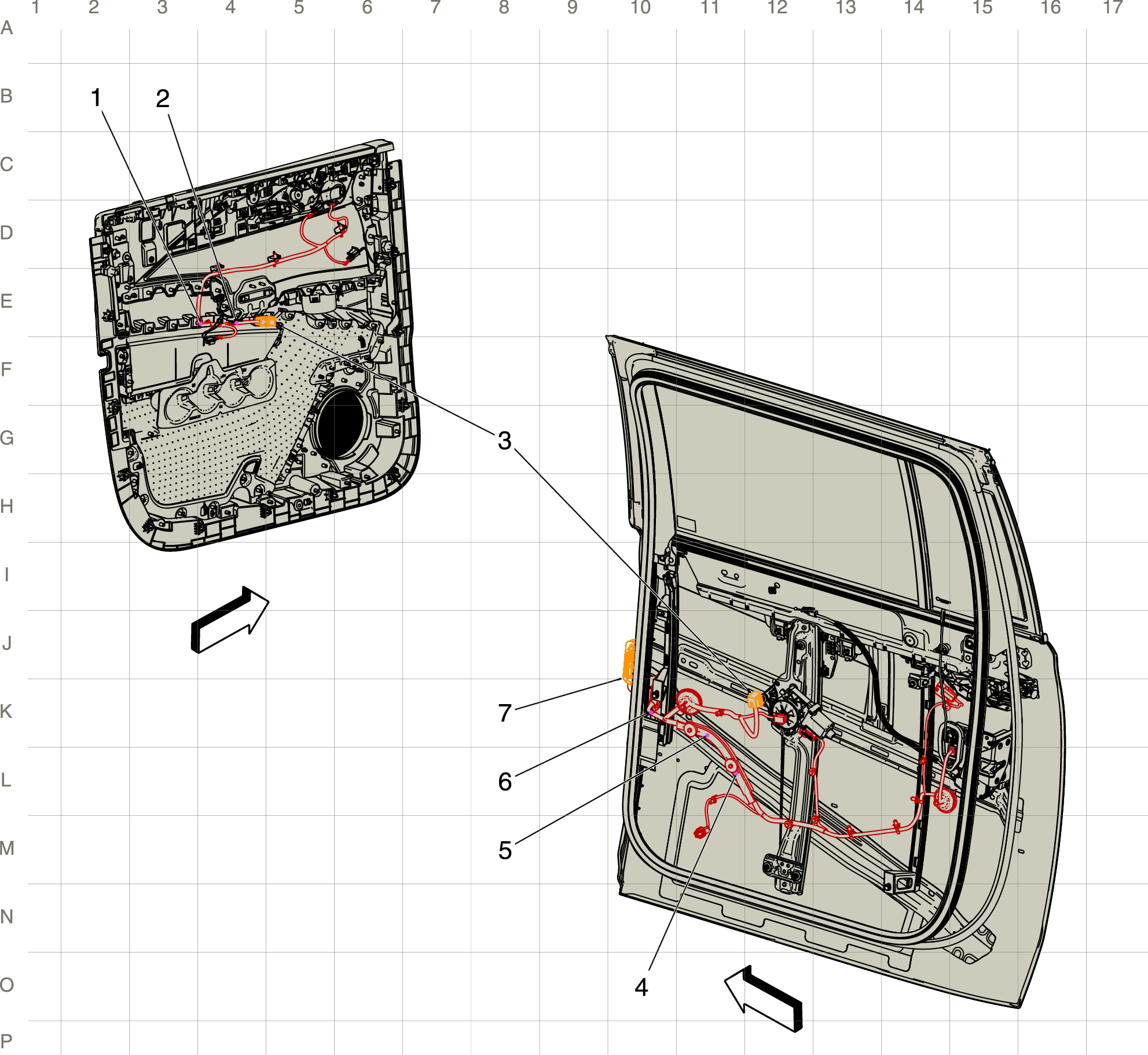

Fig 1: Right Rear Door Harness Routing
GM3639527Courtesy of GENERAL MOTORS COMPANY
Items
1: J820 (Z75)
2: J816 (Z75)
3: X805 (Z75) X805 Right Rear Door Harness to Right Rear Door Trim Harness (Z75)
4: J811 (UQH)
5: J810 (UQH)
6: J815
7: X800 X800 Right Rear Door Harness to Body Harness
