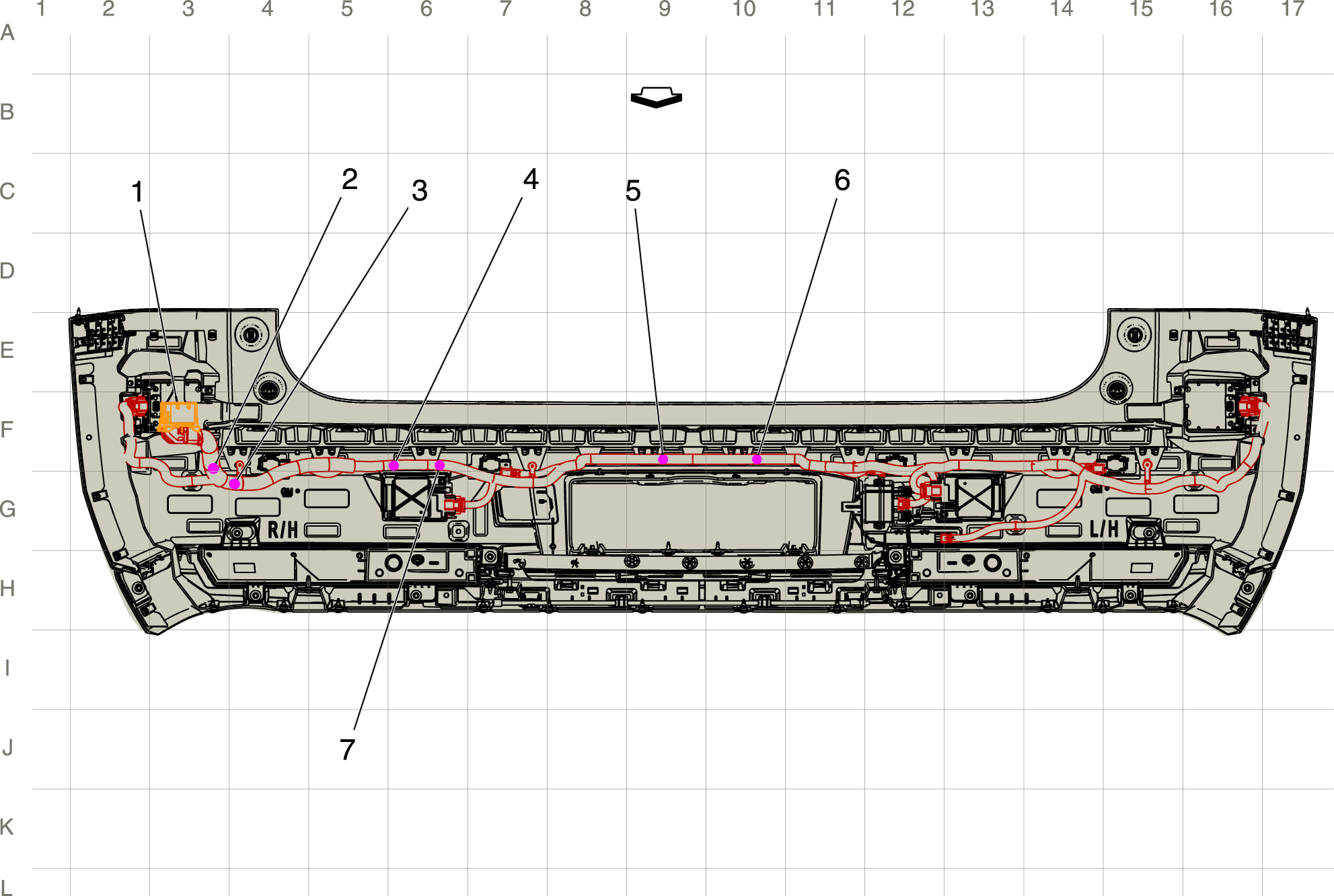

Rear Bumper Harness Routing (Z75)
| Items |
|---|
| 1: X495 X495 Body Harness to Rear Bumper Harness |
| 2: J499 (T79, UKC or UGN with Z75) |
| 3: J490 (UD5 or UD7) |
| 4: J494 (Z75 with UGN) |
| 5: J495 (UD5 or UD7) |
| 6: J498 (UKC) |
| 7: J493 (T79) |
| Items |
|---|
| 1: X495 X495 Body Harness to Rear Bumper Harness |
| 2: J499 (T79, UKC or UGN with Z75) |
| 3: J490 (UD5 or UD7) |
| 4: J494 (Z75 with UGN) |
| 5: J495 (UD5 or UD7) |
| 6: J498 (UKC) |
| 7: J493 (T79) |
