Passenger Door Harness Routing

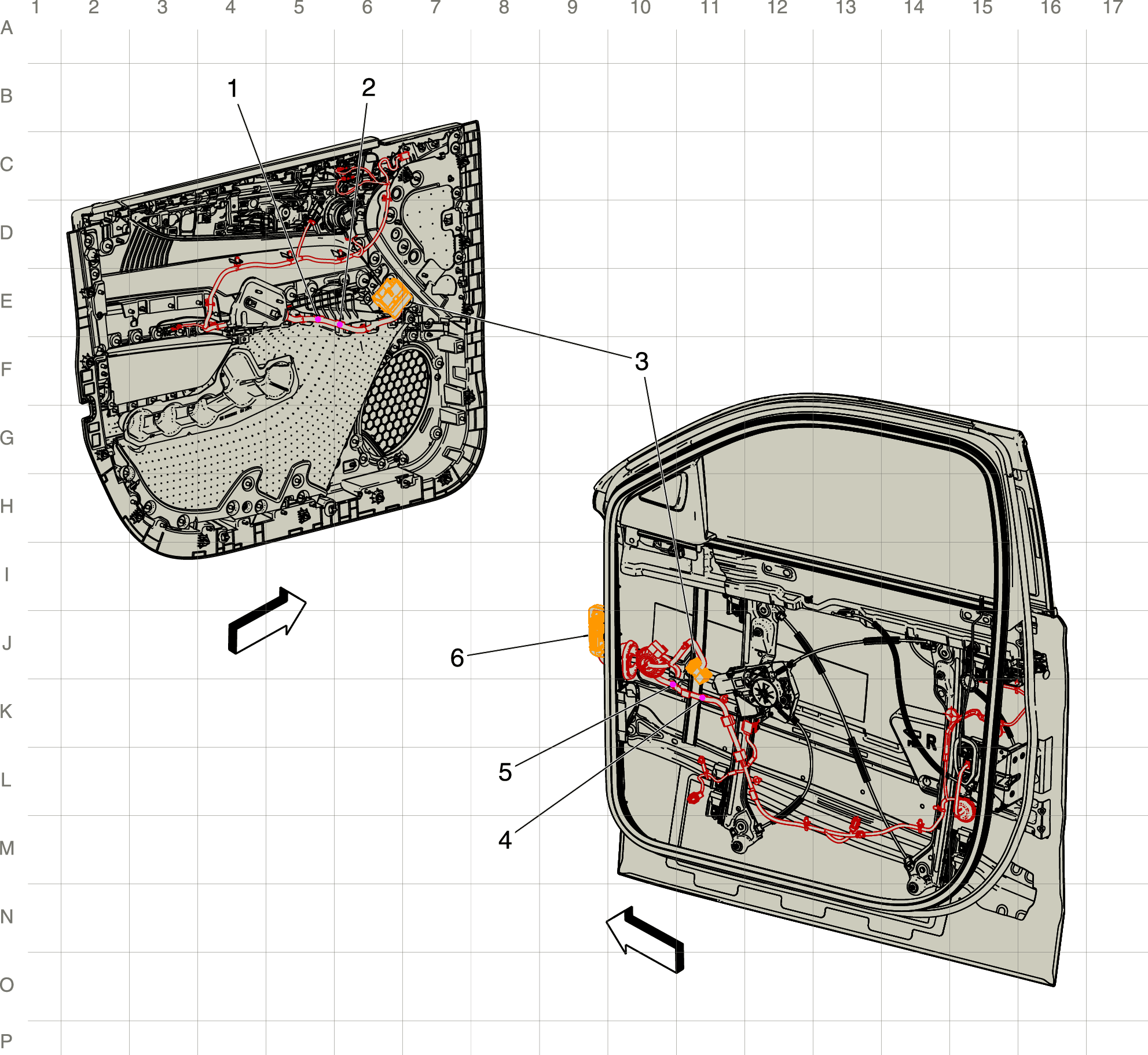

Fig 1: Passenger Door Harness Routing
GM3639525Courtesy of GENERAL MOTORS COMPANY
Items
1: J620 (Z75)
2: J616
3: X605 X605 Passenger Door Harness to Passenger Door Trim Harness
4: J611 (HD7)
5: J615
6: X600 X600 Passenger Door Harness to Body Harness
