Overhead Console Harness Routing

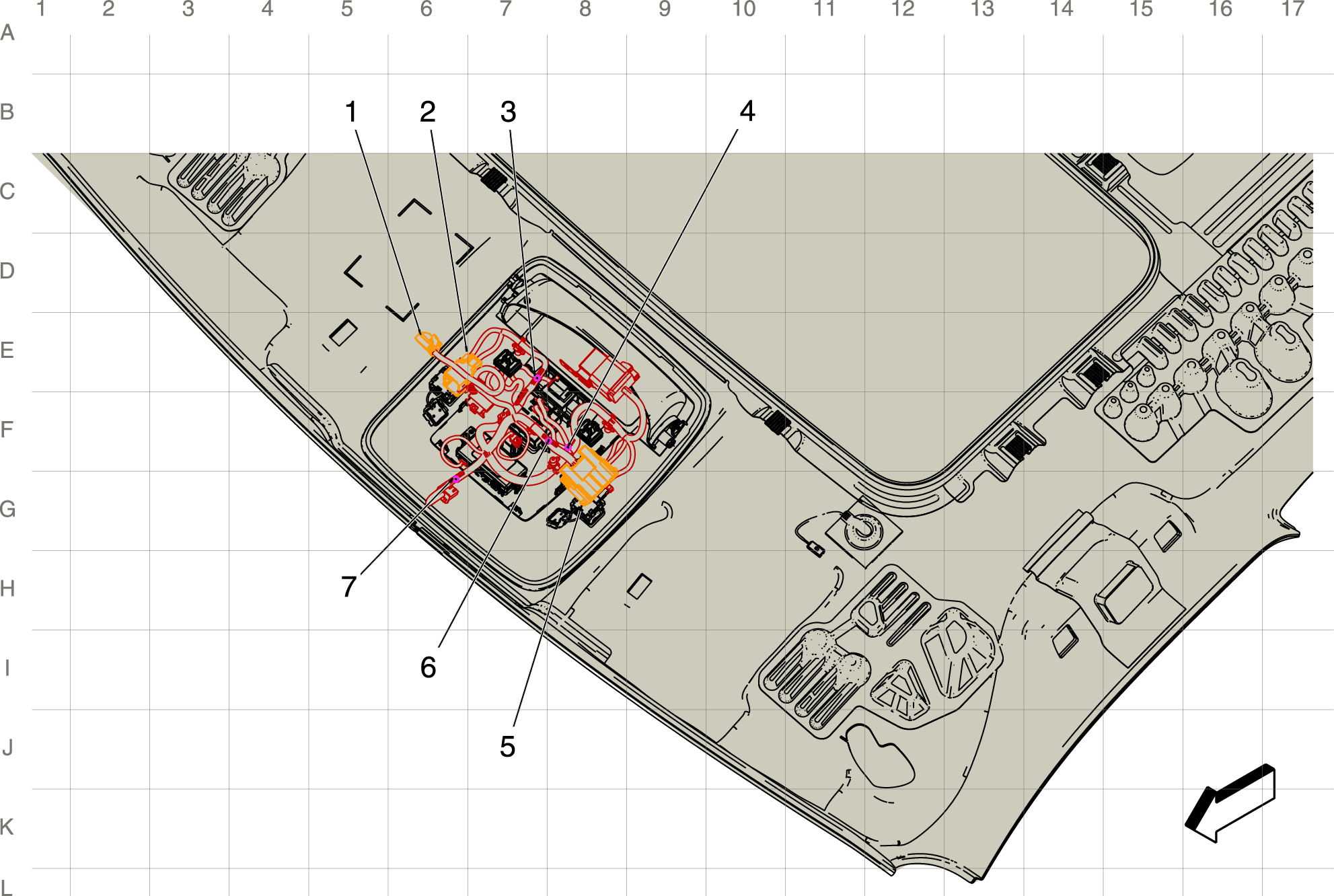

Fig 1: Overhead Console Harness Routing
GM3802628Courtesy of GENERAL MOTORS COMPANY
Items
1: X319 (CF5 or TRW) X319 Headliner Harness to A-Pillar Harness (CF5/TRW)
2: X324 (CF5) X324 Sunroof Harness to Headliner Harness (CF5)
3: J303
4: J302
5: X316 X316 Headliner Harness to Headliner Harness
6: J301
7: J333
