Liftgate Harness Routing

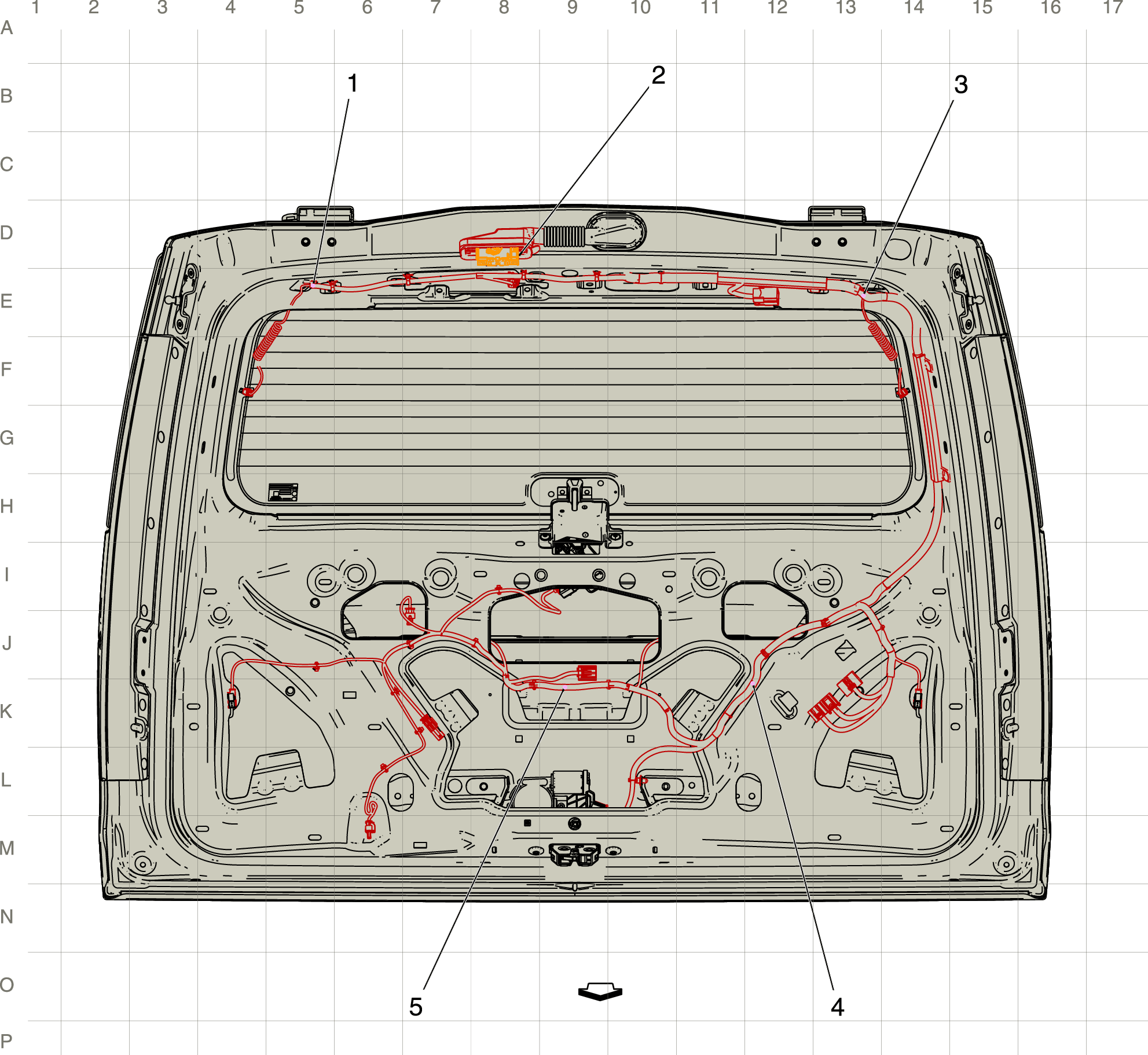

Fig 1: Liftgate Harness Routing

GM3639529

Courtesy of GENERAL MOTORS COMPANY

Items
1: J901
2: X900 X900 Liftgate Harness to Body Harness
3: J902
4: J903 (TB5 or TC2)
5: J904
