Left Rear Door Harness Routing

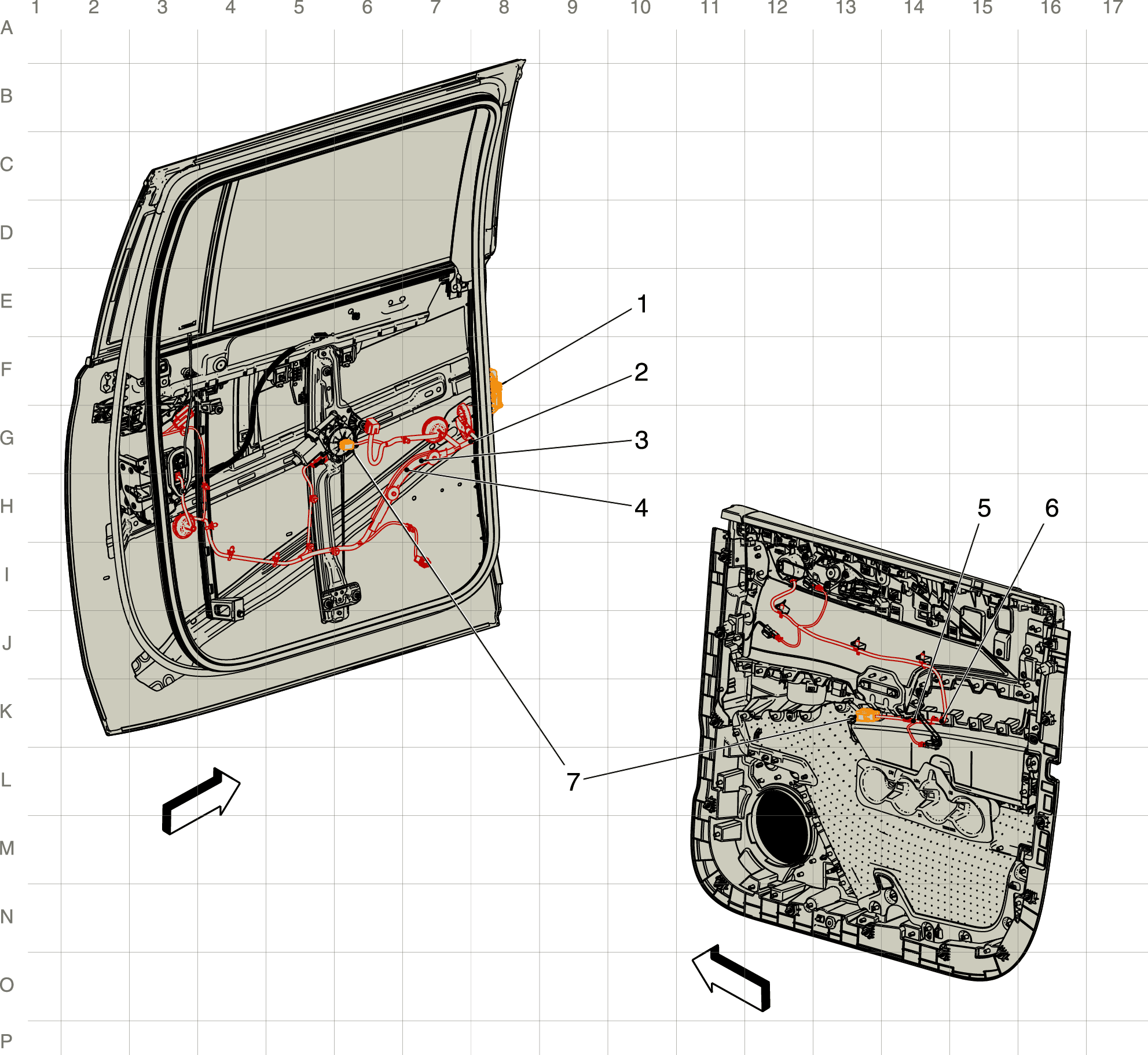

Fig 1: Left Rear Door Harness Routing
GM3639526Courtesy of GENERAL MOTORS COMPANY
Items
1: X700 X700 Left Rear Door Harness to Body Harness
2: J715
3: J710 (UQH)
4: J711 (UQH)
5: J116 (Z75)
6: J720 (Z75)
7: X705 (Z75) X705 Left Rear Door Harness to Left Rear Door Trim Harness (Z75)
