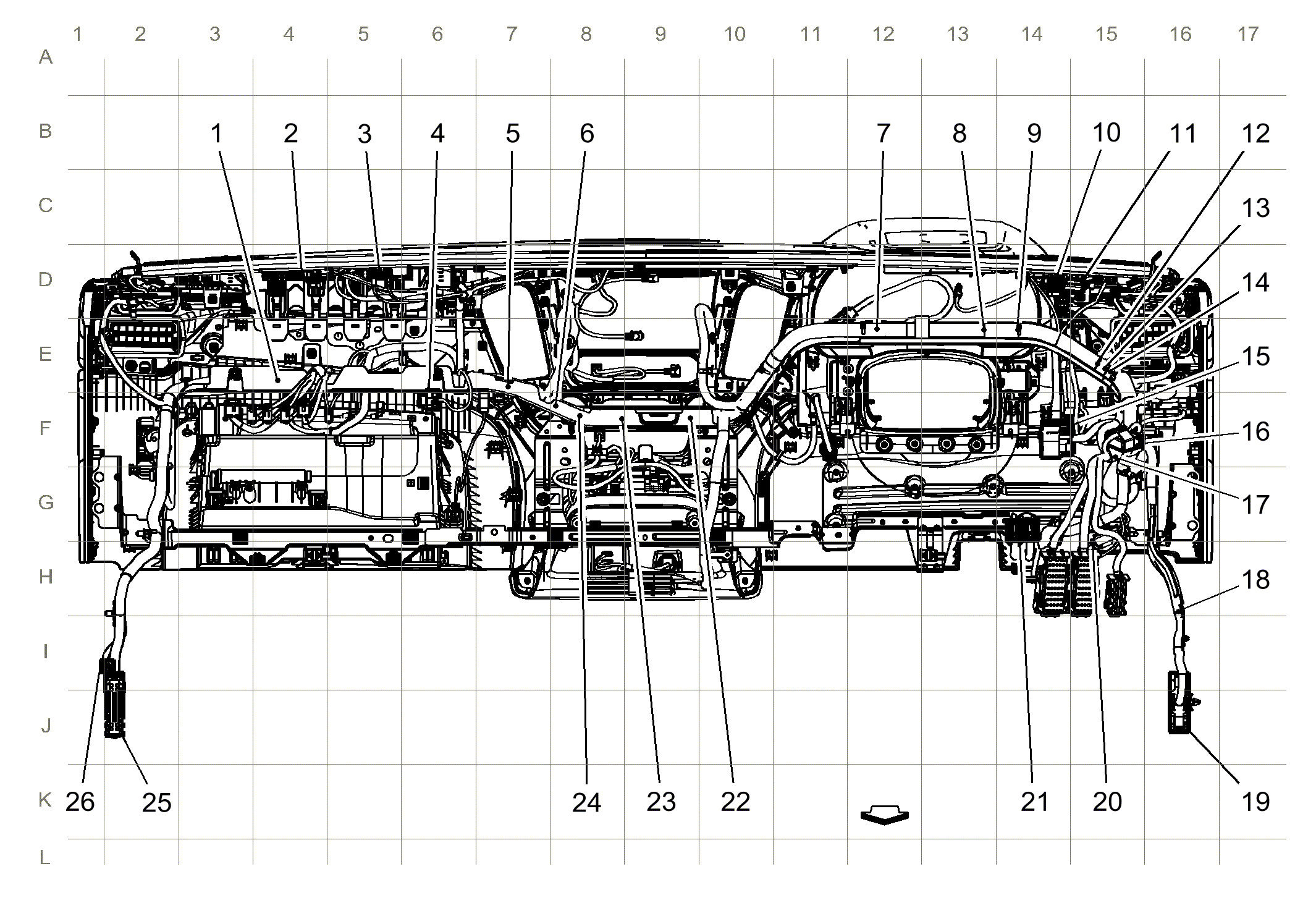

| 1: J242 |
| 2: X222 (UE1) X222 Instrument Panel COAX to A-Pillar Harness COAX (IO6 with VV4 or CV3)X222 Instrument Panel COAX to A-Pillar Harness COAX (VV4 or CV3 without IO6) |
| 3: X215 X215 HVAC Harness to Instrument Panel Harness |
| 4: X205 X205 Instrument Panel Harness to Passenger Air Bag Jumper Harness |
| 5: J250 (IO5 or IO6 or TG5) |
| 6: J260 (IO5 or IO6 with UE1, UEU, UFL, or UHX) |
| 7: J212 (Z75) |
| 8: J211 |
| 9: J205 |
| 10: X204 (U42) X204 Instrument Panel Harness LVDS to Headliner Harness LVDS (U42 with DNU)X204 Instrument Panel Harness LVDS to Headliner Harness LVDS (U42 without DNU) |
| 11: X203 X203 Headliner Harness to Instrument Panel Harness |
| 12: J201 |
| 13: J200 |
| 14: J210 |
| 15: X201 X201 Steering Column Harness to Instrument Panel Harness |
| 16: JX200 JX200 Splice Pack |
| 17: J208 |
| 18: J208 |
| 19: X225 X225 Body Harness to Instrument Panel Harness |
| 20: J294 |
| 21: X399 X399 Instrument Panel Harness to Instrument Panel Harness |
| 22: J220 |
| 23: J249 |
| 24: J251 |
| 25: X275 X275 Instrument Panel Harness to Body Harness |
| 26: X238 (AZ3) X238 Instrument Panel Harness USB to Body Harness USB (AZ3) |
