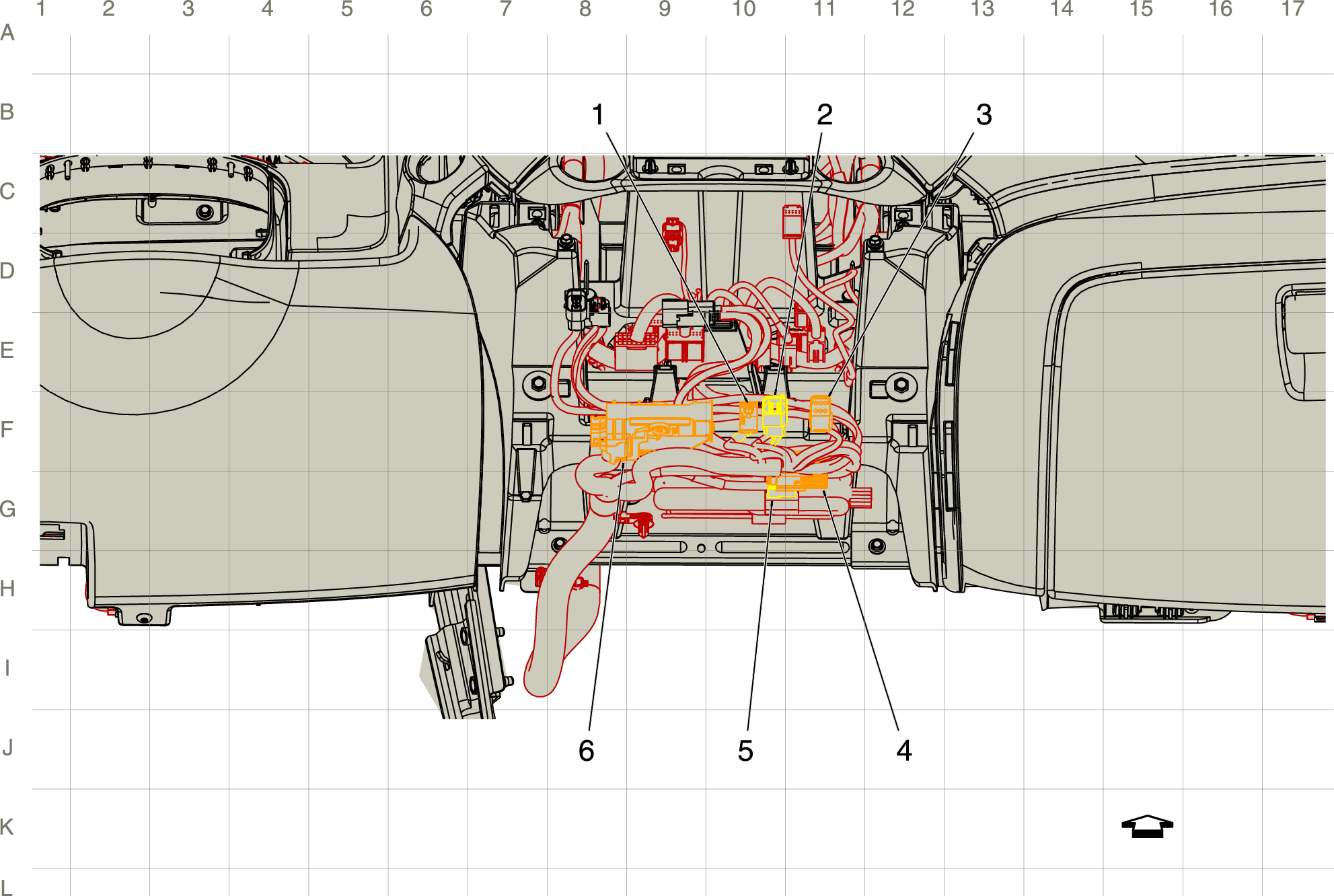

| 1: X302 (D07) X302 Floor Console Harness USB to Instrument Panel Harness USB (D07 without U42)X302 Floor Console Harness USB to Instrument Panel Harness USB (D07 with U42) |
| 2: X303 (D07) X303 Floor Console Harness USB to Instrument Panel Harness USB (D07 with U42) |
| 3: X306 (KI4 or KI5 with D07) X306 Instrument Panel Harness to Floor Console Harness ((KI4/KI5)+D07) |
| 4: X271 (WX7) X271 Instrument Panel Harness to Instrument Panel Harness (WX7) |
| 5: X272 (6J3 or 6J7) X272 Instrument Panel Harness to Upfitter Jumper Harness (6J3/6J7) |
| 6: X300 (D07) X300 Instrument Panel Harness to Floor Console Harness (D07) |
