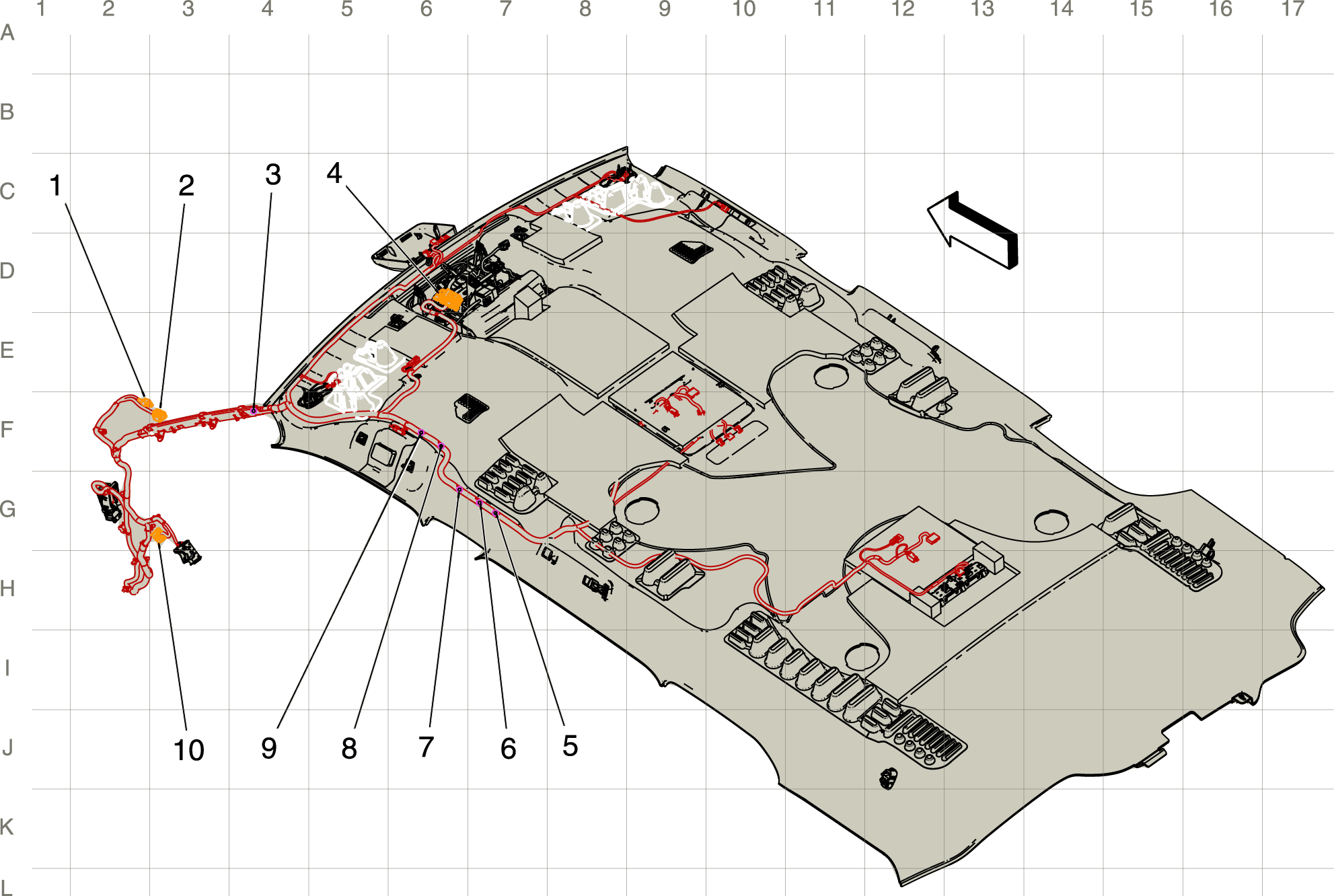

Headliner Harness Routing
| Items |
|---|
| 1: X204 (U42) X204 Instrument Panel Harness LVDS to Headliner Harness LVDS (U42 with DNU)X204 Instrument Panel Harness LVDS to Headliner Harness LVDS (U42 without DNU) |
| 2: X203 X203 Headliner Harness to Instrument Panel Harness |
| 3: J319 (DNU or U42) |
| 4: X316 X316 Headliner Harness to Headliner Harness |
| 5: J332 |
| 6: J312 |
| 7: J320 (AZ3) |
| 8: J313 |
| 9: J311 |
| 10: X315 (NKC, UGN or UTT) X315 Headliner Harness to Body Harness (NKC/UGN/UTU/UTV) |
