Forward Lamp Harness Routing - Left Engine Compartment

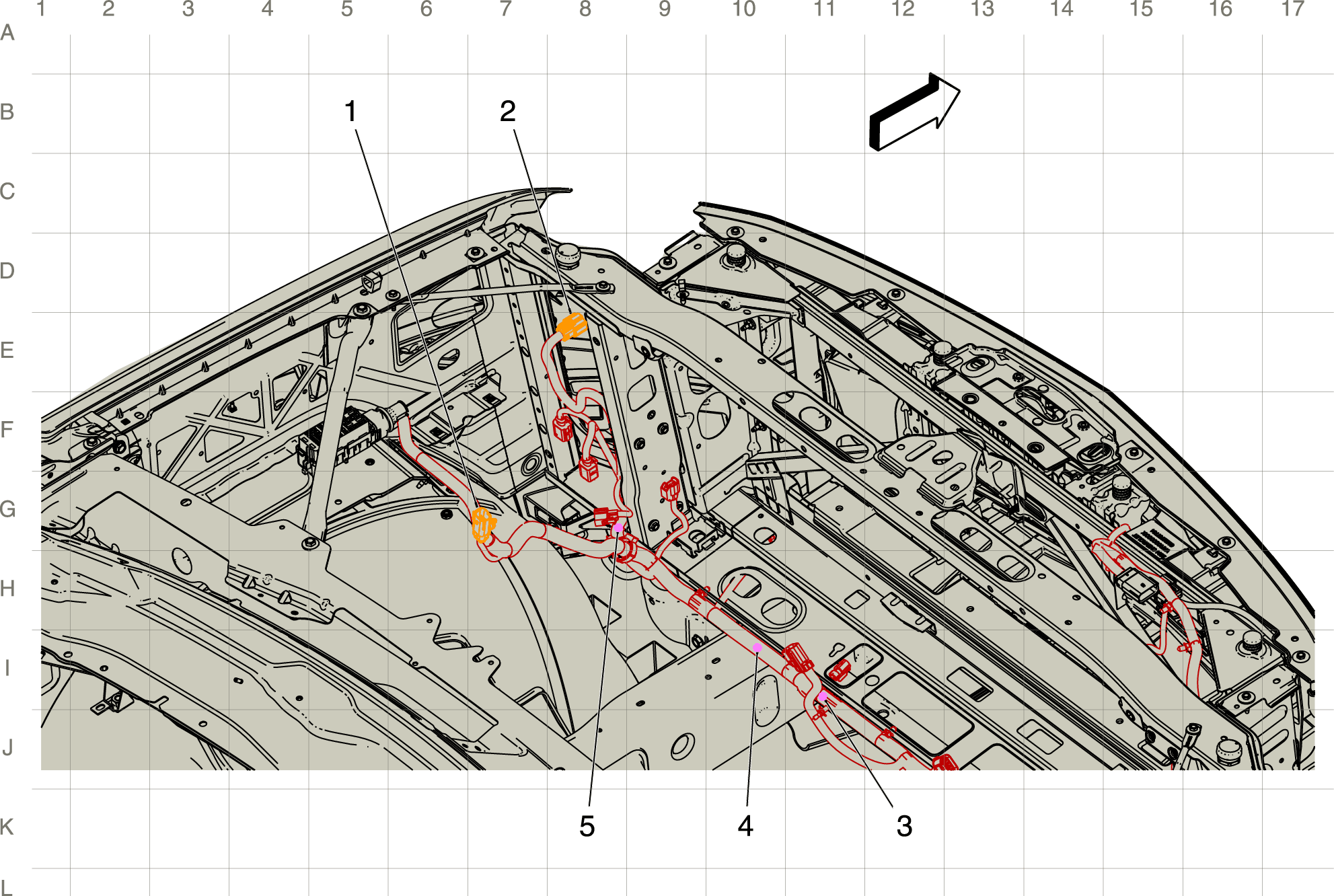

Fig 1: Forward Lamp Harness Routing - Left Engine Compartment
GM3639520Courtesy of GENERAL MOTORS COMPANY
Items
1: X139 X139 Engine Harness to Forward Lamp Harness (L83/L86)X139 Engine Harness to Forward Lamp Harness (L96)
2: X110 X110 Forward Lamp Harness to Left Headlamp Harness
3: J130
4: J106 (UGN with Z75)
5: J115
