Floor Console Harness Routing - Top (X88 or Z88)

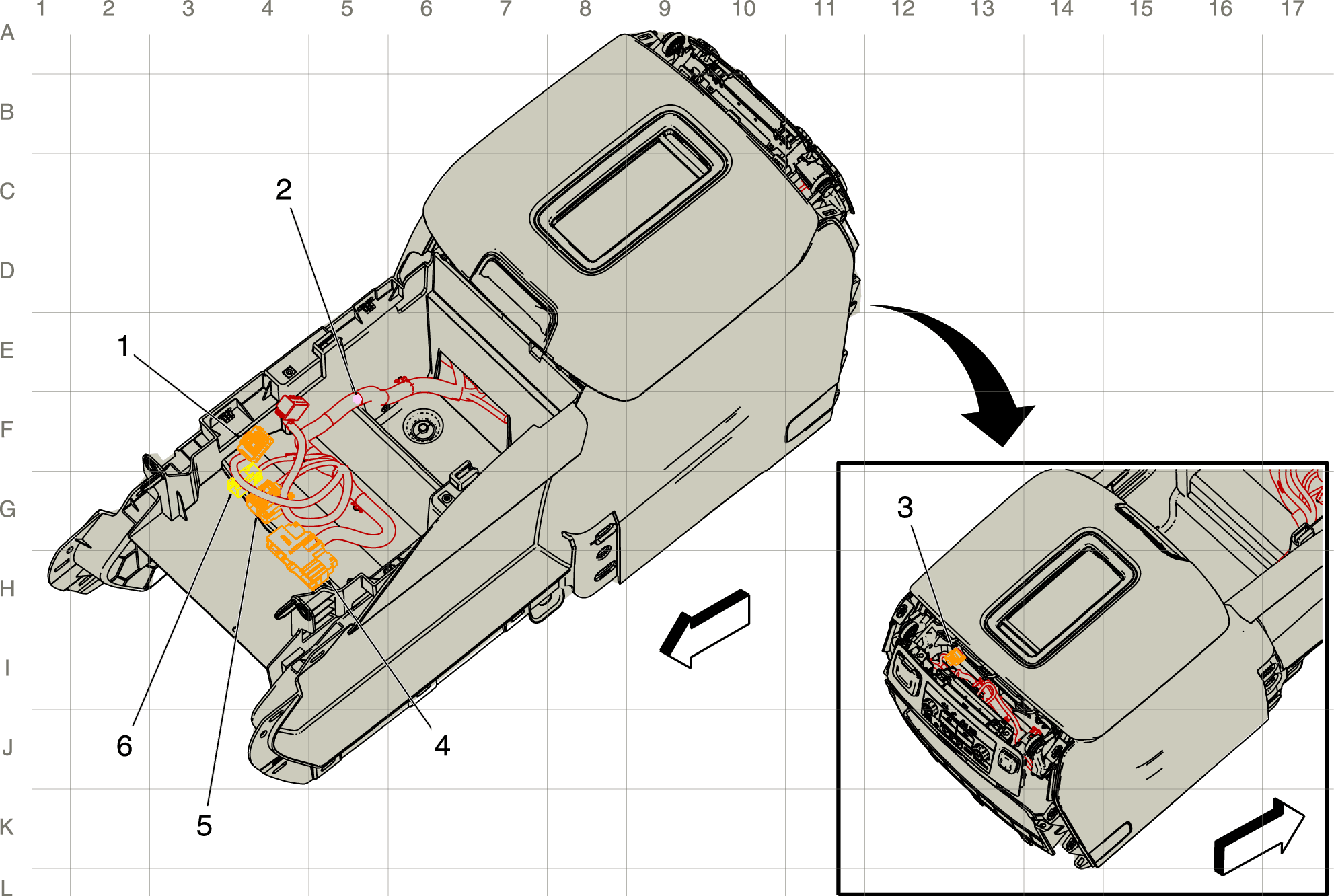

Fig 1: Floor Console Harness Routing - Top (X88 or Z88)

Courtesy of GENERAL MOTORS COMPANY

Items
1: X307 (X88 or Z88 with D07) X307 Floor Console Harness to Floor Console Extension Harness (X88/Z88)
2: J339 (D07 with DCK or K4C)
3: X313 (DCK) X313 Power Mat Jumper Harness to Floor Console Harness (DCK)
4: X300 (D07) X300 Instrument Panel Harness to Floor Console Harness (D07)
5: X304 (AZ3) X304 Body Harness USB to Center Seat Harness USB (AZ3)
6: X306 (KI4 or KI5 with D07) X306 Instrument Panel Harness to Floor Console Harness ((KI4/KI5)+D07)
