Engine Harness Routing - Right Rear (L83 or L86)

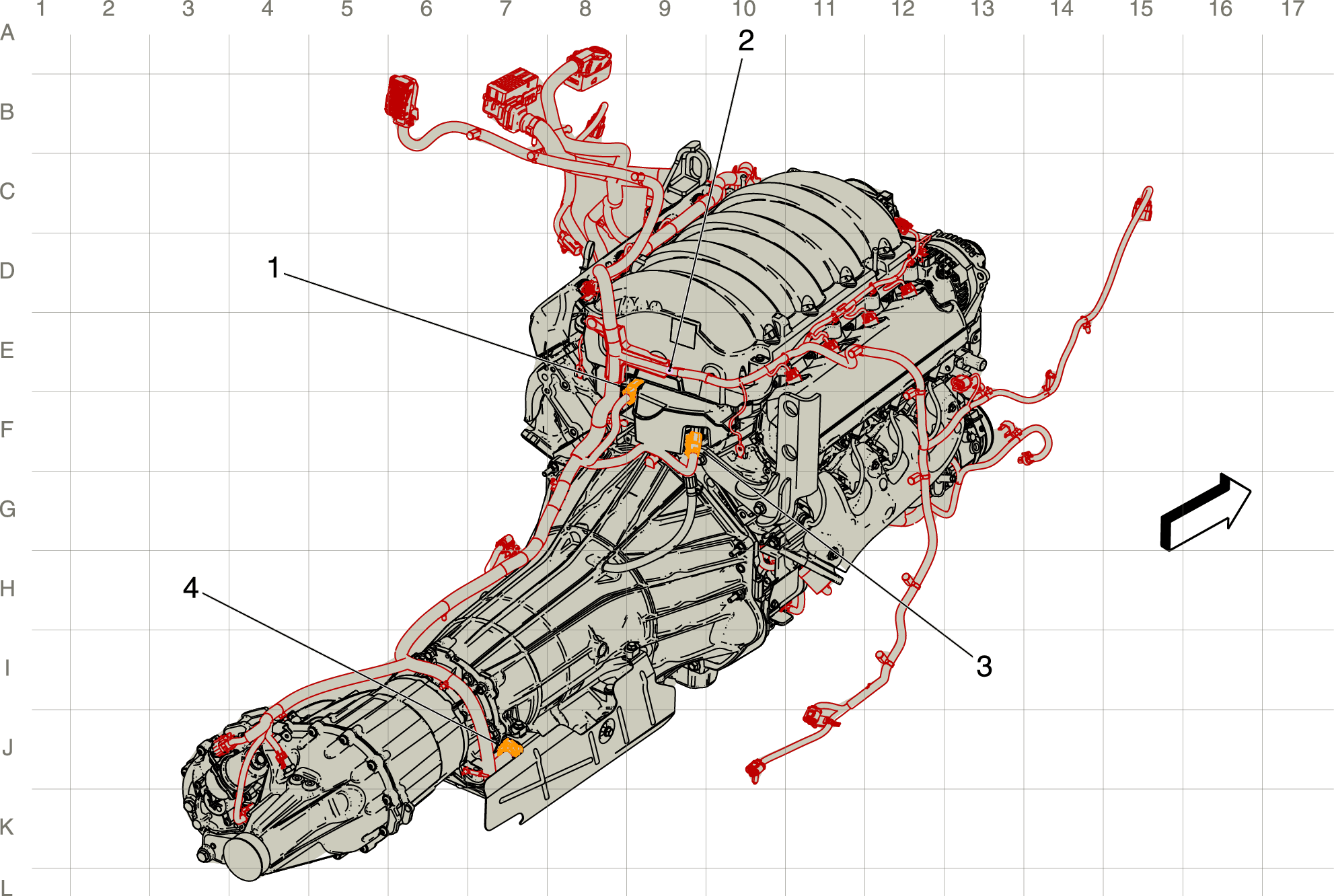

Fig 1: Engine Harness Routing - Right Rear (L83 or L86)

Courtesy of GENERAL MOTORS COMPANY

Items
1: X161 (L83 or L86) X161 Engine Harness to Even Fuel Injector Harness (L83/L86)
2: J161
3: X160 (L83 or L86) X160 Engine Harness to Odd Fuel Injector Harness (L83/L86)
4: X175 (M5U) X175 Engine Harness to Transmission Harness (M5U)
