Engine Harness Routing - Left Rear (L96)

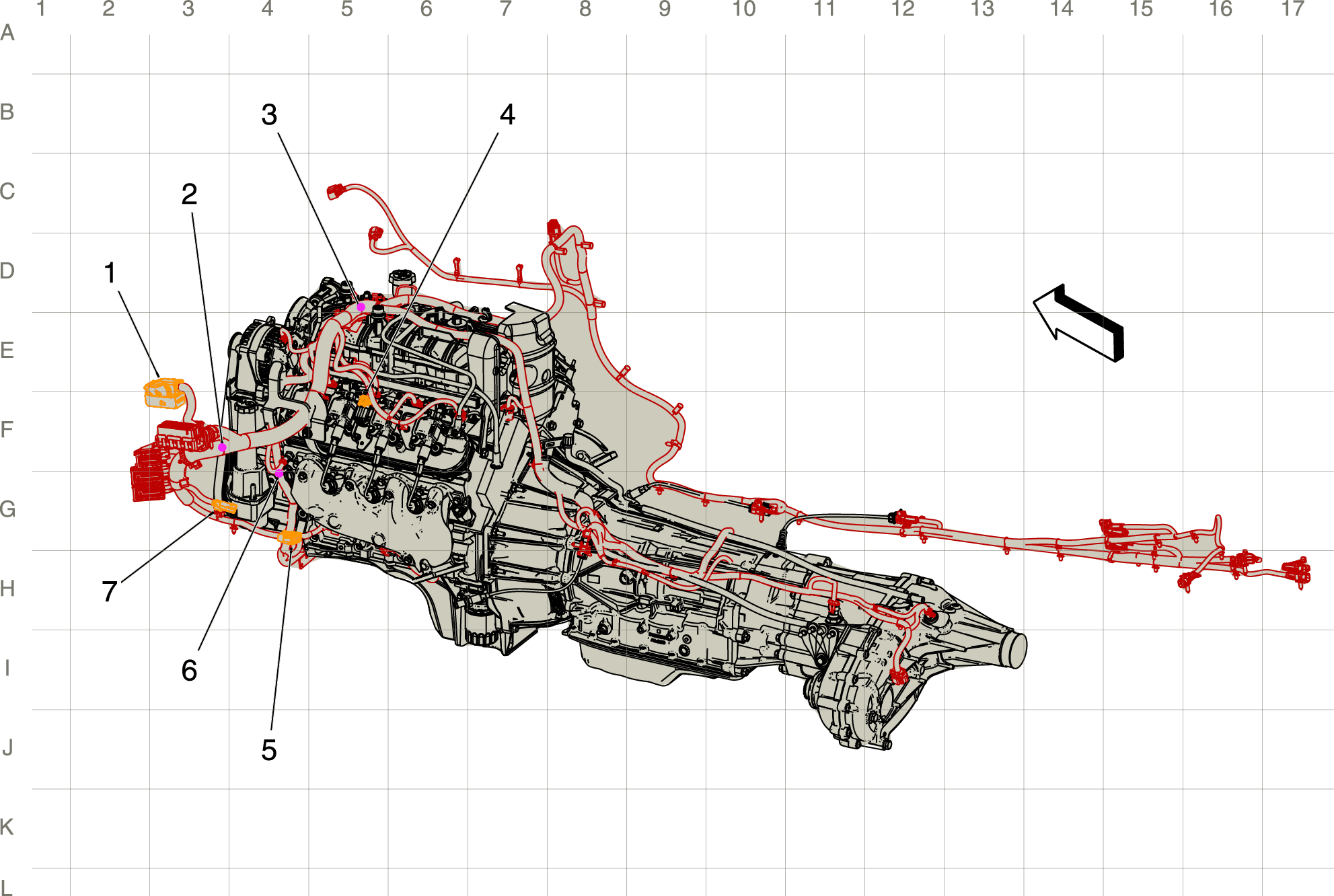

Fig 1: Engine Harness Routing - Left Rear (L96)

Courtesy of GENERAL MOTORS COMPANY

Items
1: X115 X115 Engine Harness to Body Harness
2: J165
3: J123 (L96)
4: X171 (L96) X171 Engine Harness to Ignition Coil (Even) Jumper Harness
5: X125 X125 Engine Harness to Chassis Harness
6: J127
7: X111 (NP0 or NQH) X111 Front Axle Jumper Harness to Engine Harness (NP0/NQH)
