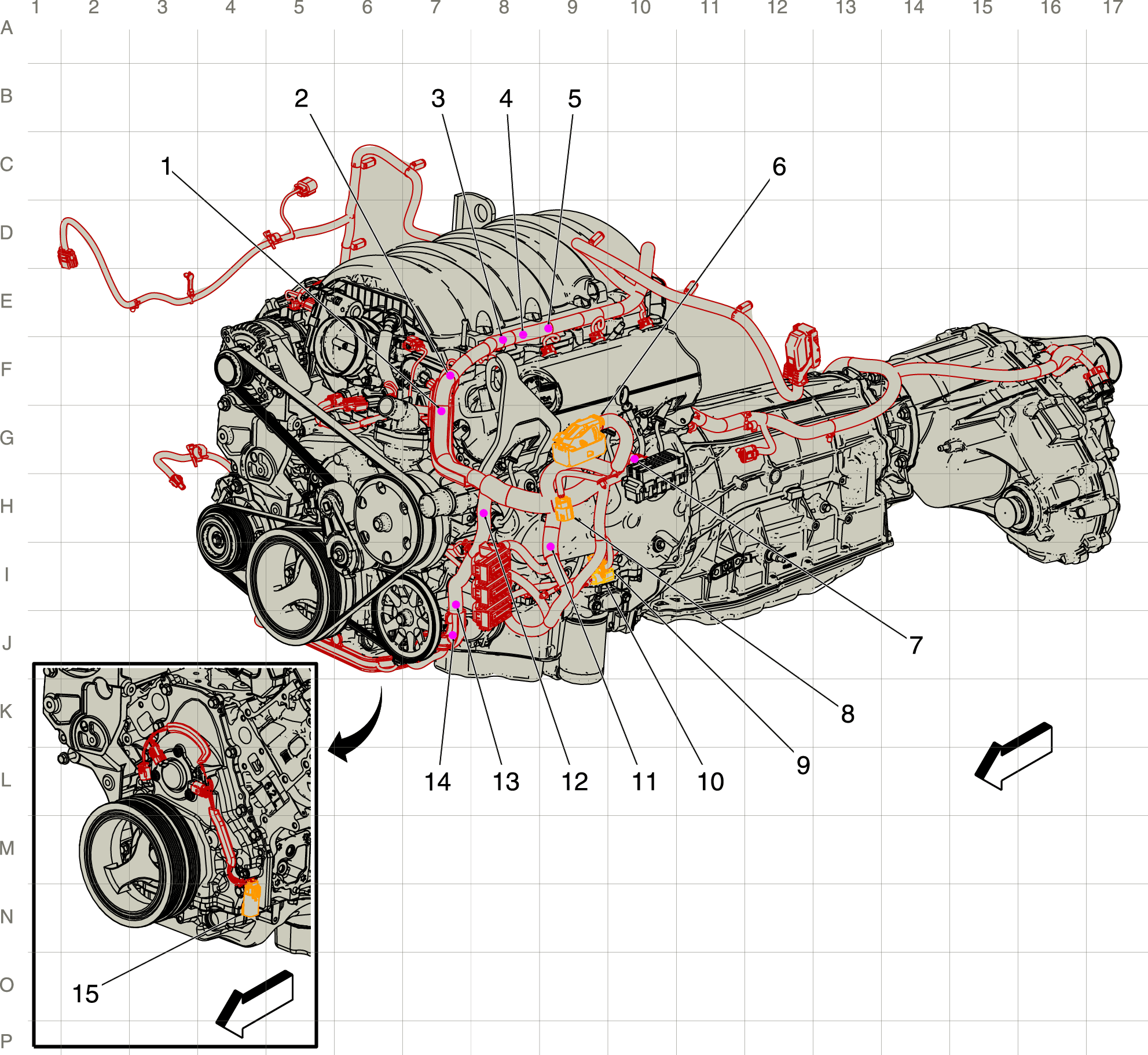

Engine Harness Routing - Left Front (L83 or L86)
| Items |
|---|
| 1: J126 |
| 2: J163 (L83 or L86) |
| 3: J152 (K59) |
| 4: J153 (K59) |
| 5: J161 |
| 6: X115 X115 Engine Harness to Body Harness |
| 7: J165 |
| 8: X139 X139 Engine Harness to Forward Lamp Harness (L83/L86)X139 Engine Harness to Forward Lamp Harness (L96) |
| 9: X111 (NP0 or NQH) X111 Front Axle Jumper Harness to Engine Harness (NP0/NQH) |
| 10: X125 X125 Engine Harness to Chassis Harness |
| 11: J127 |
| 12: J124 (L83 or L86) |
| 13: J150 (K59) |
| 14: J151 (K59) |
| 15: X154 X154 Engine Harness to Camshaft Jumper Harness (L83/L86) |
