Driver Seat Harness Routing

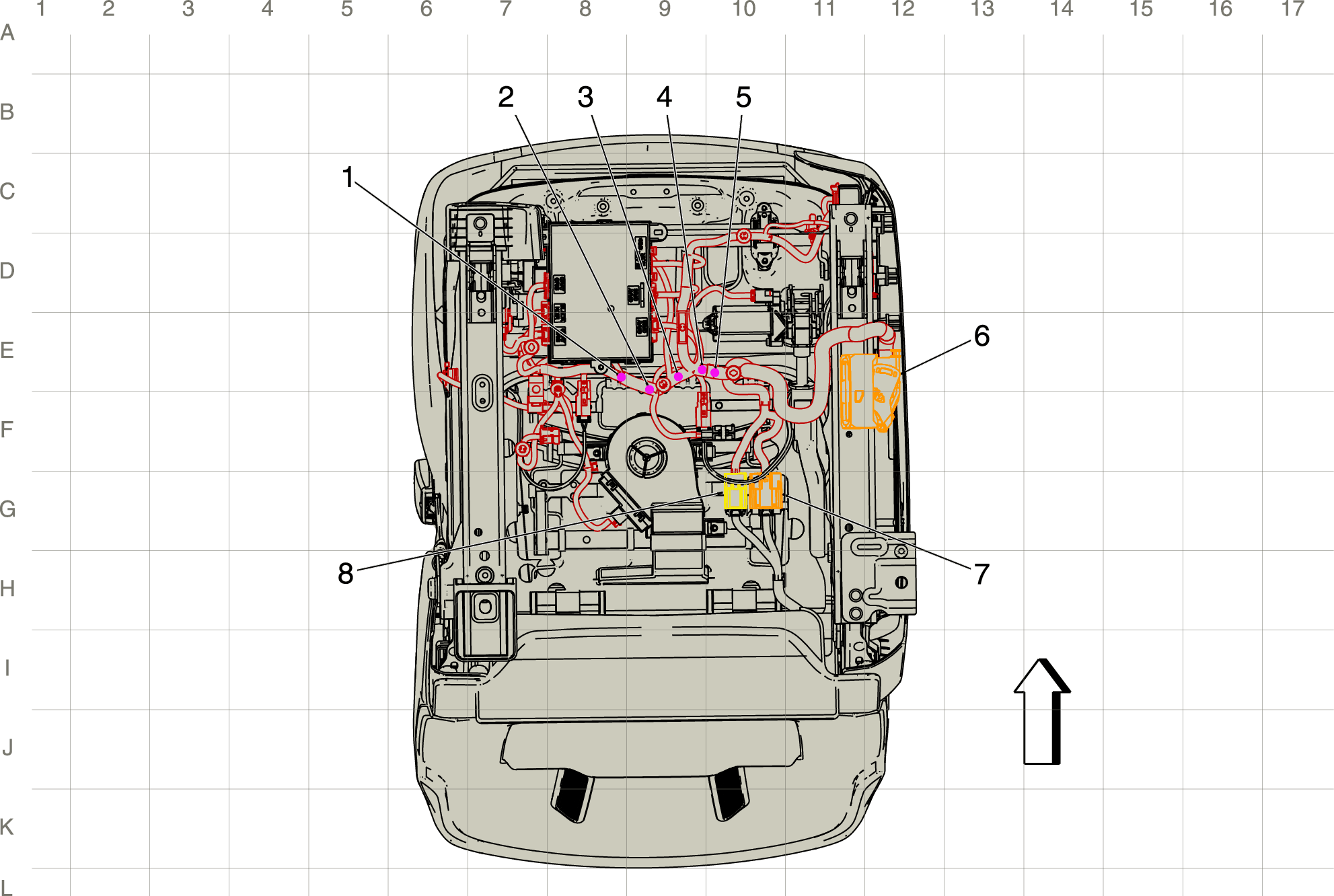

Fig 1: Driver Seat Harness Routing
GM4175559Courtesy of GENERAL MOTORS COMPANY
Items
1: J314
2: J315
3: J313
4: J317 (KB6)
5: J316 (KB6)
6: X310 X310 Driver Seat Cushion Harness to Body Harness
7: X312 X312 Driver Seat Back Harness to Driver Seat Cushion Harness (-AYQ)X312 Driver Seat Back Harness to Driver Cushion Harness (12 WAY)X312 Driver Seat Back Harness to Driver Seat Cushion Harness (AYQ)X312 Driver Seat Back Harness to Driver Seat Cushion Harness (ULT)
8: X311 (without ULT) X311 Driver Seat Back Harness to Driver Seat Cushion Harness
