Driver Door Harness Routing

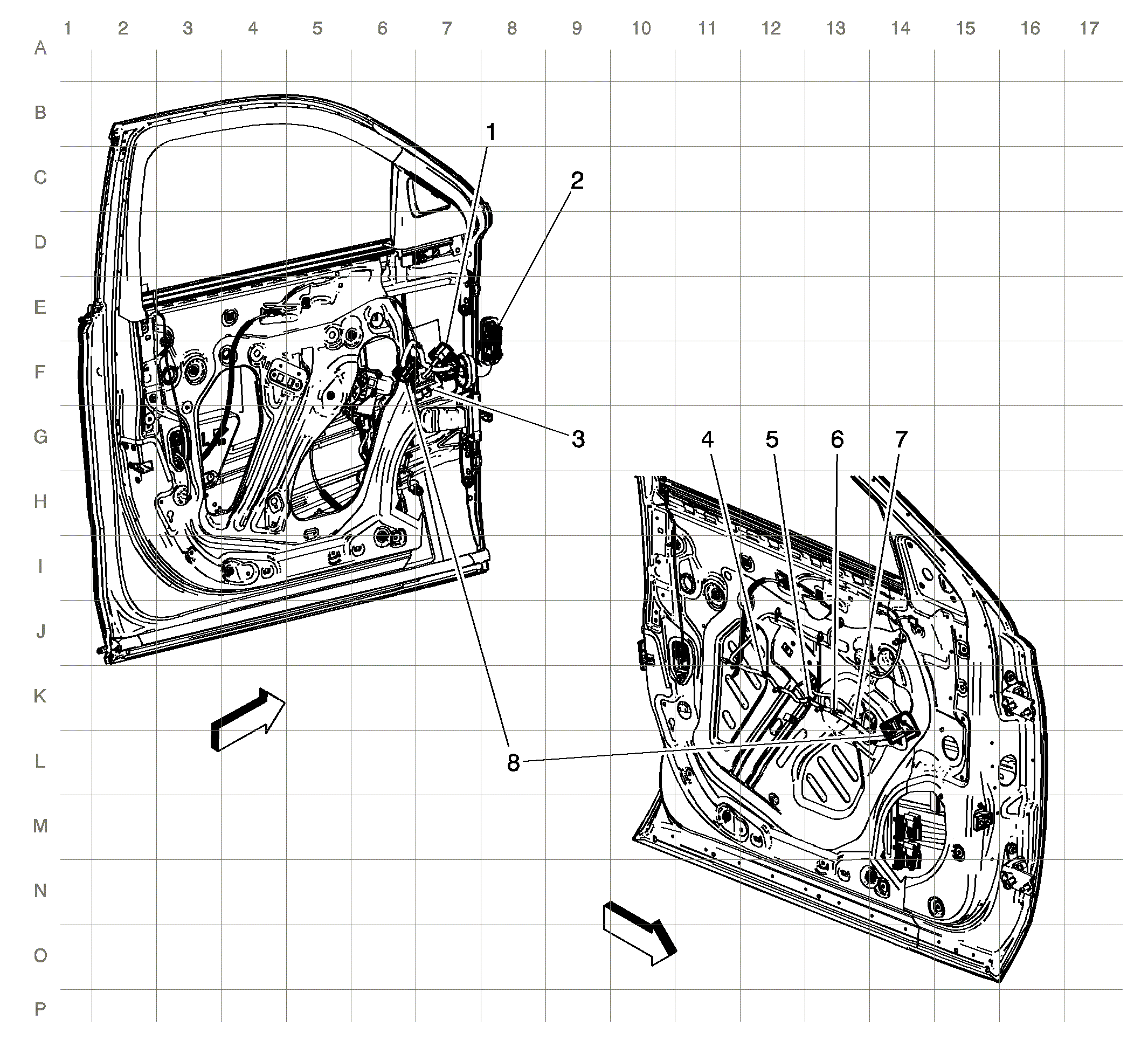

Fig 1: Driver Door Harness Routing
GM3639522Courtesy of GENERAL MOTORS COMPANY
Items
1: X510 X510 OSRVM Harness to Driver Door Harness
2: X500 X500 Driver Door Harness to Body Harness
3: J515
4: J520 (Z75)
5: J518 (Z75)
6: J519
7: J516
8: X505 X505 Driver Door Harness to Driver Door Trim Harness
