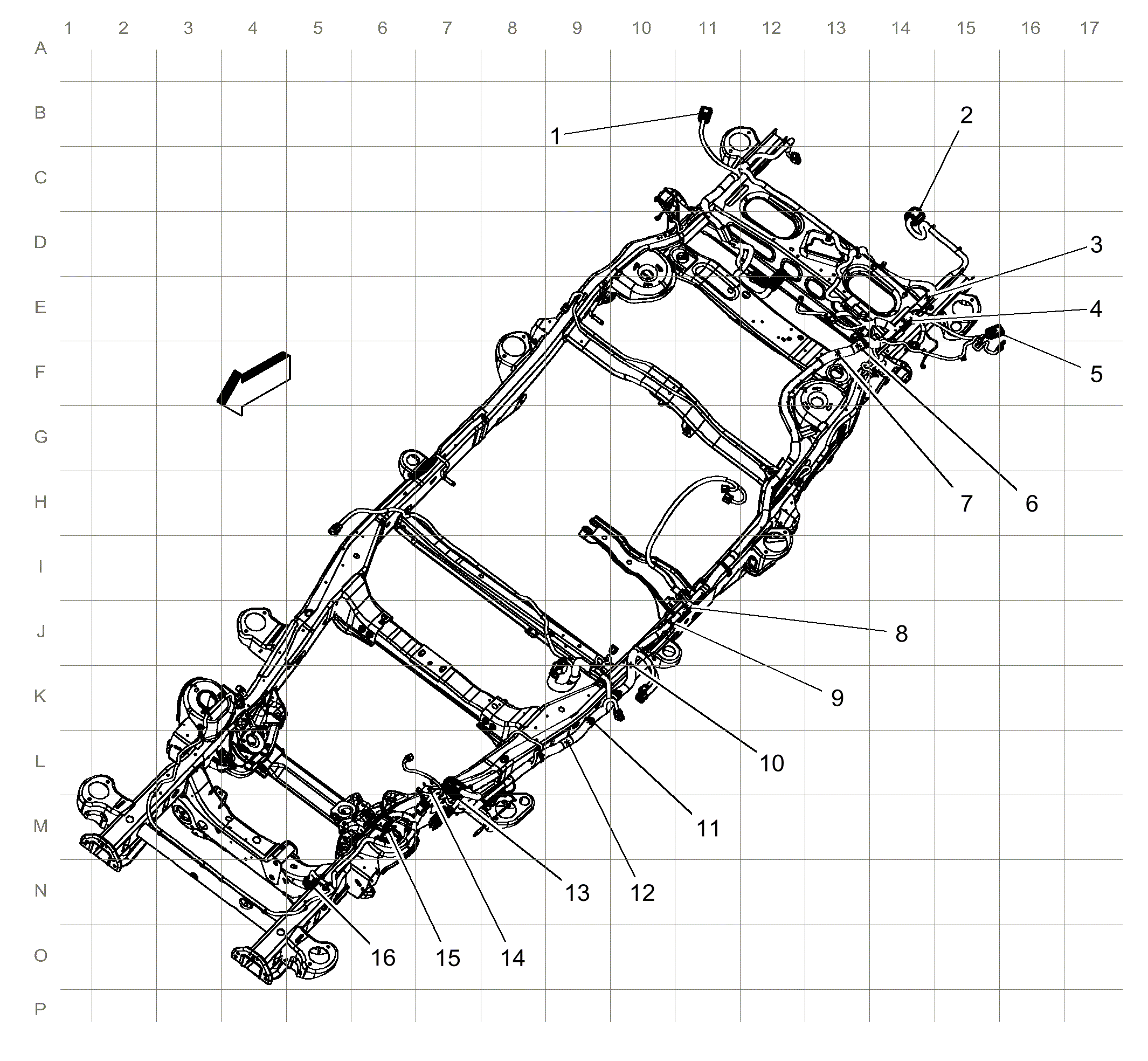

Chassis Harness Routing
| Items |
|---|
| 1: X420 X420 Right Tail Lamp Jumper Harness to Chassis HarnessX420 Right Tail Lamp Jumper Harness to Chassis HarnessX420 Right Tail Lamp Jumper to Chassis Harness (Z88) |
| 2: X88 Trailer Connector (without VQ9) X88 Trailer Connector |
| 3: J452 |
| 4: J453 |
| 5: X410 X410 Left Tail Lamp Jumper Harness to Chassis HarnessX410 Left Tail Lamp Jumper to Chassis Harness (Z75)X410 Left Tail Lamp Jumper to Chassis Harness (Z88) |
| 6: J451 (BRS, JL1, Z85 or Z95) |
| 7: J449 (JL1 or Z85) |
| 8: J375 |
| 9: J355 |
| 10: J356 |
| 11: J192 (BRS) |
| 12: J191 |
| 13: X185 X185 Chassis Harness to Body Harness |
| 14: J199 |
| 15: X125 X125 Engine Harness to Chassis Harness |
| 16: X182 X182 Chassis Harness to Power Steering Jumper Harness |
