Body Harness Routing - Right Rear of Passenger Compartment

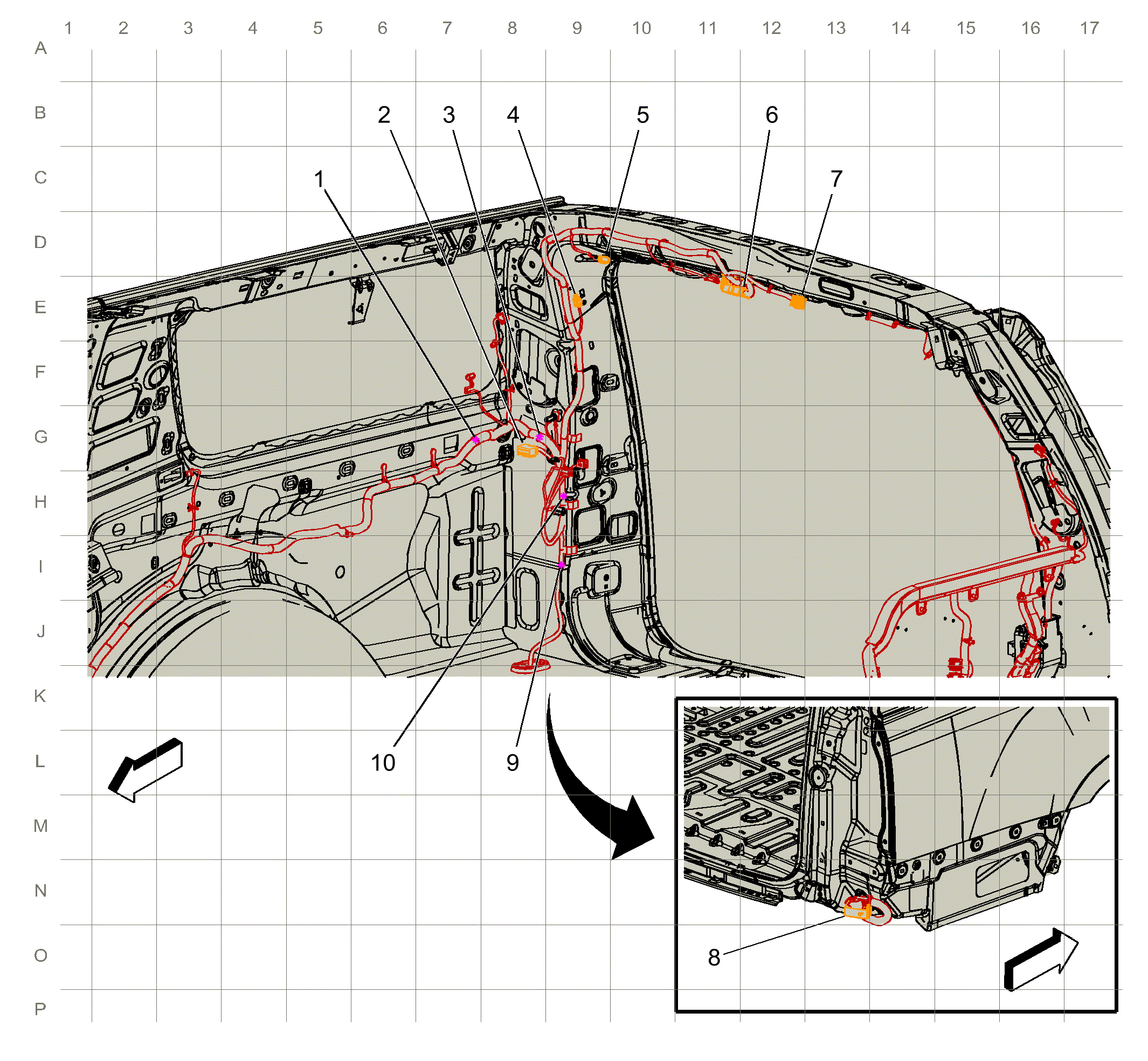

Fig 1: Body Harness Routing - Right Rear of Passenger Compartment

Courtesy of GENERAL MOTORS COMPANY

Items
1: J402
2: X487 X487 Body Harness to Auxiliary HVAC Jumper Harness
3: J403 (K59, TC2, UEU, UFL UHX, UGN or UKC)
4: X390 X390 Body Harness to Driver Roof Rail Air Bag Jumper Harness
5: X486 (without SWB) X486 Body Harness to Rear Dome Lamp Jumper Harness (-SWB)
6: X900 X900 Liftgate Harness to Body Harness
7: X490 X490 Body Harness to Body Harness
8: X495 X495 Body Harness to Rear Bumper Harness
9: J401 (ATN or ATT)
10: J404 (ATT or ATN)
