Body Harness Routing - Left Rear of Passenger Compartment

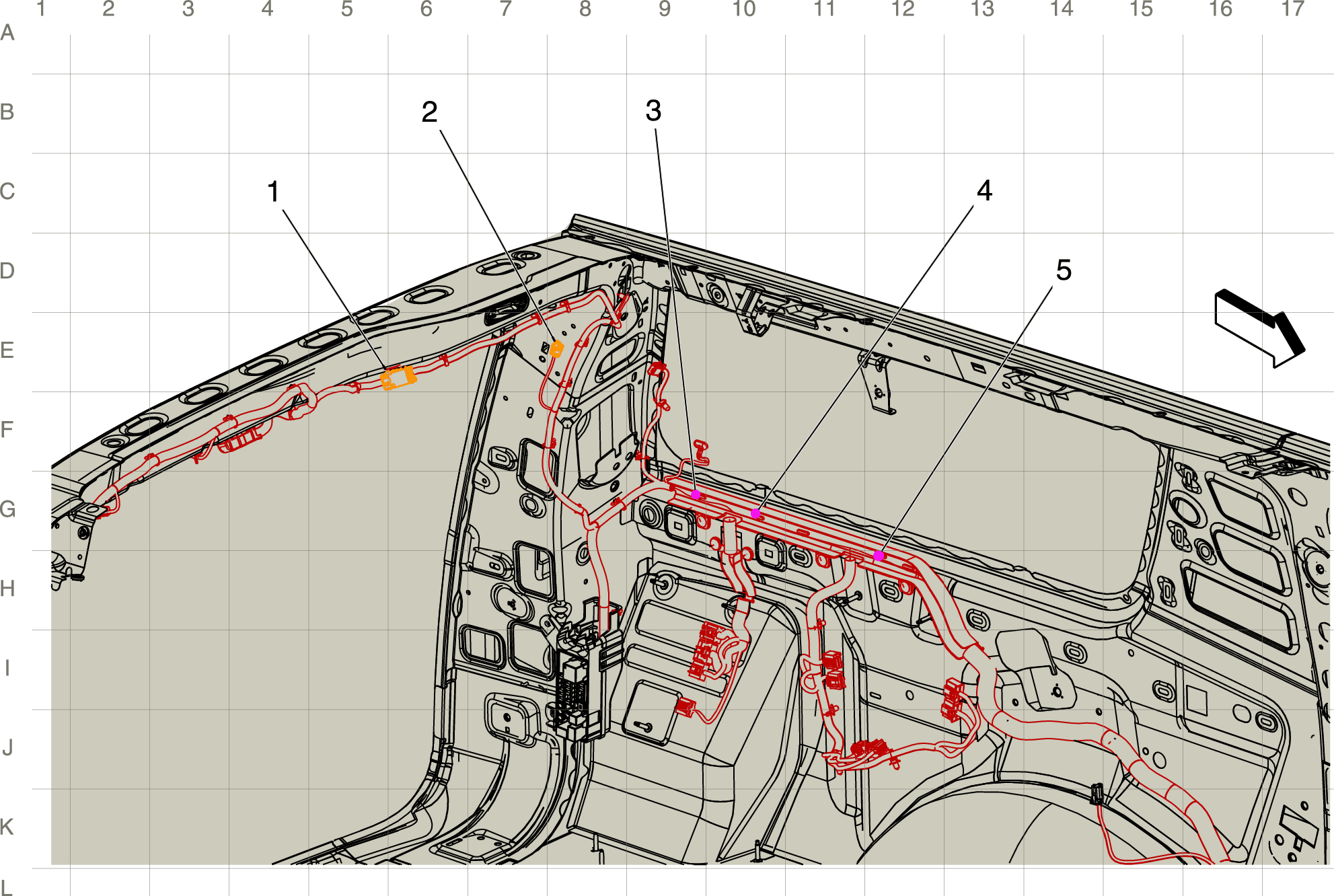

Fig 1: Body Harness Routing - Left Rear of Passenger Compartment
GM3747556Courtesy of GENERAL MOTORS COMPANY
Items
1: X490 X490 Body Harness to Body Harness
2: X380 X380 Body Harness to Driver Roof Rail Air Bag Jumper Harness
3: J462 (UQS)
4: J461 (UQS)
5: J460 (ATN or ATT)
