Body Harness Routing - Left Middle of Passenger Compartment

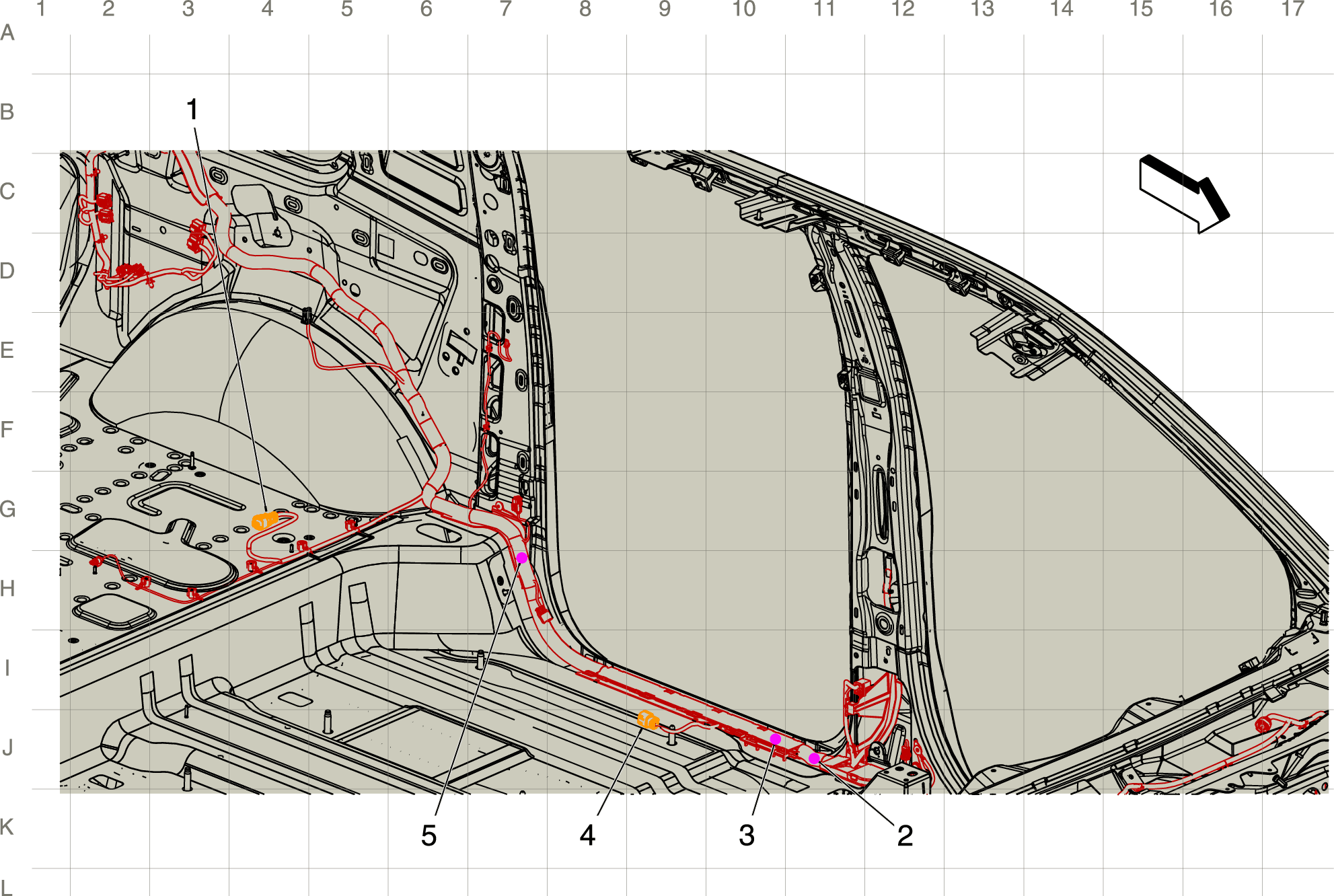

Fig 1: Body Harness Routing - Left Middle of Passenger Compartment
GM3747555Courtesy of GENERAL MOTORS COMPANY
Items
1: X338 (AS8) X338 Body Harness to 3rd Row Seat Left Harness (AS8)
2: J351 (BTM)
3: J352 (ATN or ATT)
4: X308 (ATN, ATT or KA6) X308 Body Harness to 2nd Row Seat Jumper Harness (ATN/ATT/KA6)
5: J354
