A-Pillar Harness Routing - Right Passenger Compartment

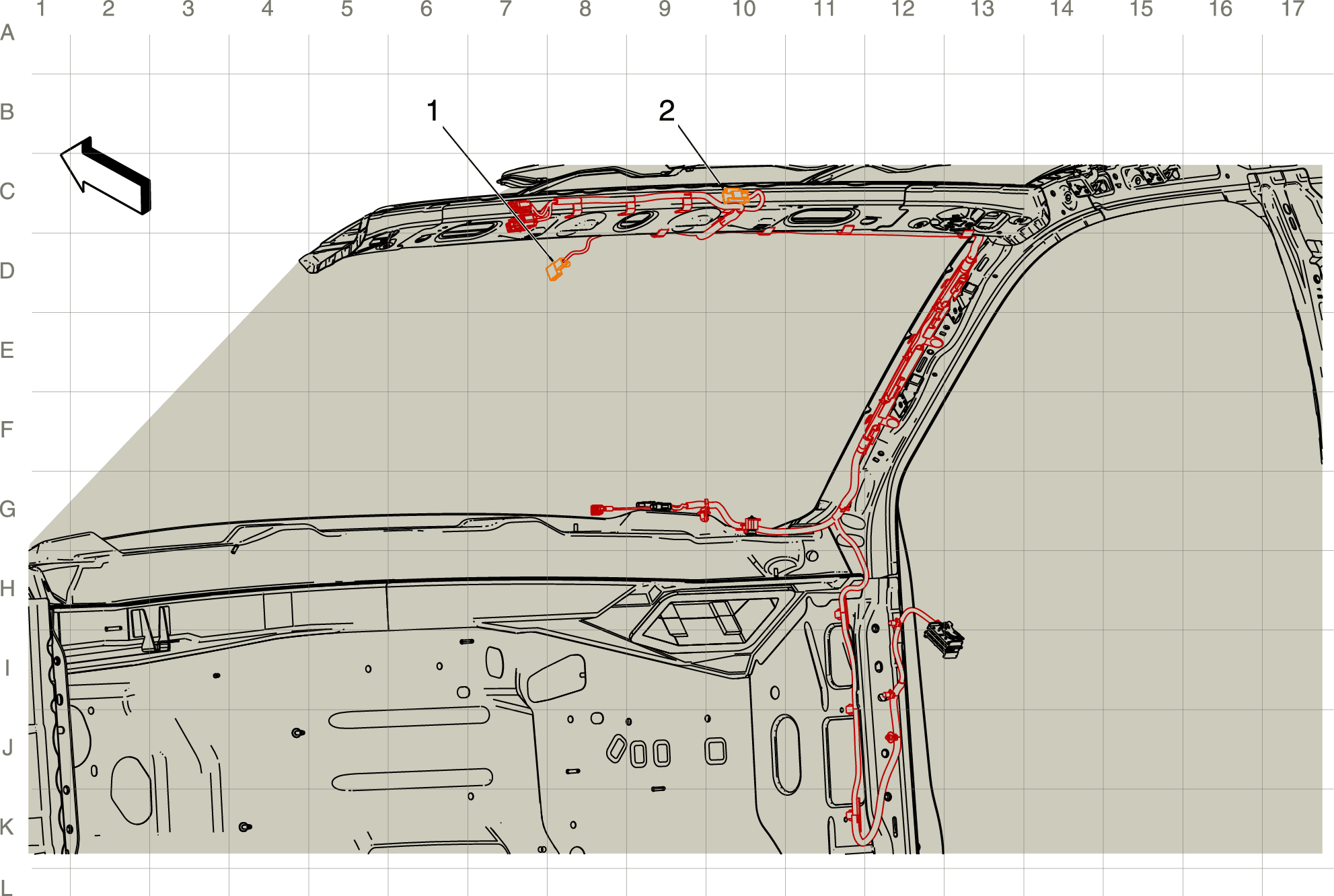

Fig 1: A-Pillar Harness Routing - Right Passenger Compartment
GM3747550Courtesy of GENERAL MOTORS COMPANY
Items
1: X318 X318 Rain Sensor Jumper Harness to A-Pillar Harness
2: X319 (CF5 or TRW) X319 Headliner Harness to A-Pillar Harness (CF5/TRW)
