Rear Seat Belt Opening Bezel Replacement

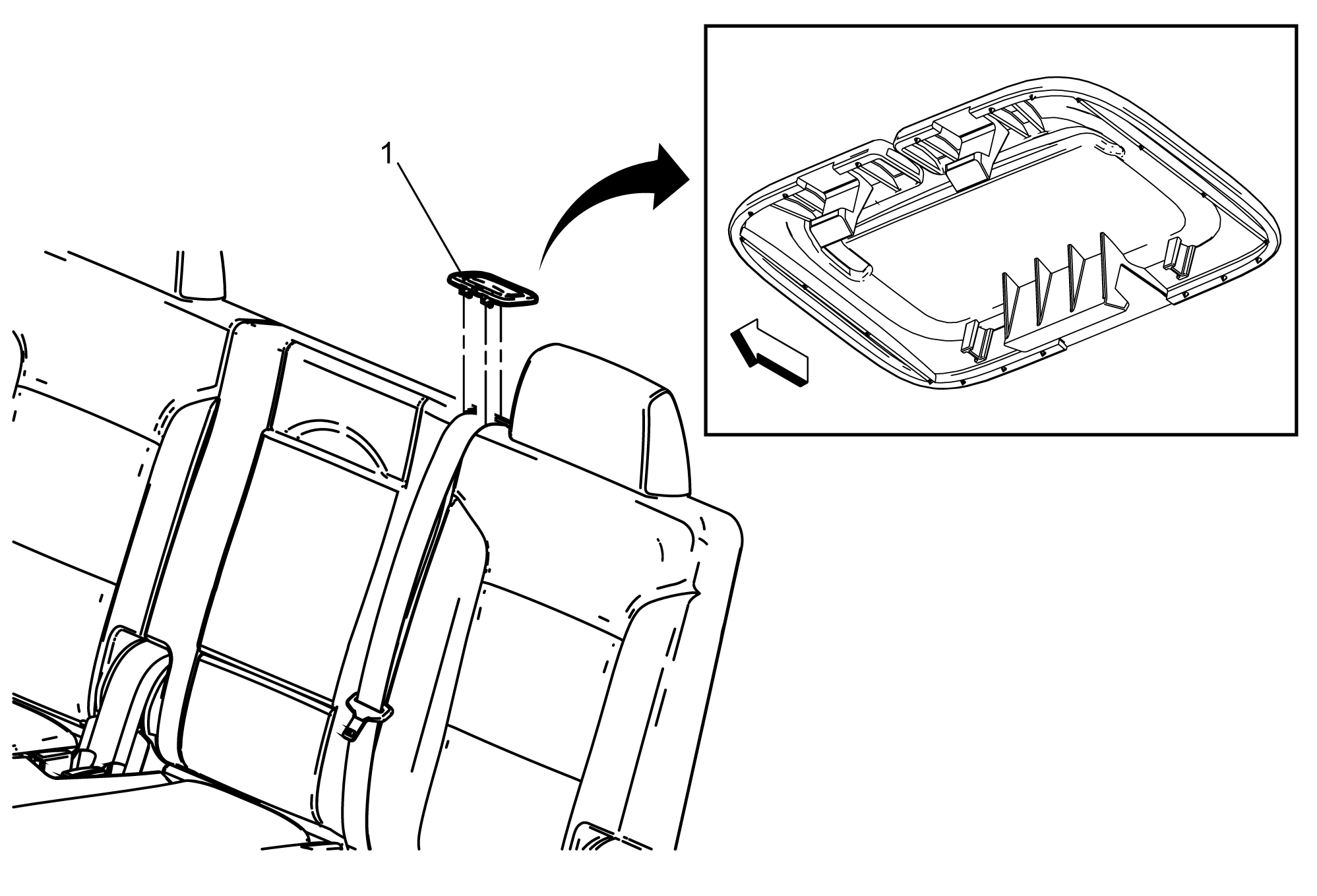

Fig 1: Rear Seat Belt Opening Bezel
GM3654191Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Belt Opening Bezel

Procedure

  1. Use a suitable flat-bladed tool to release the bezel from the rear seat cushion cover and pad and then slide it out rearwards to remove.
  2. Route the rear seat retractor belt through the opening in the rear seat back shoulder opening cover.
