Rear Seat Back Cushion Cover and Pad Replacement (60%)

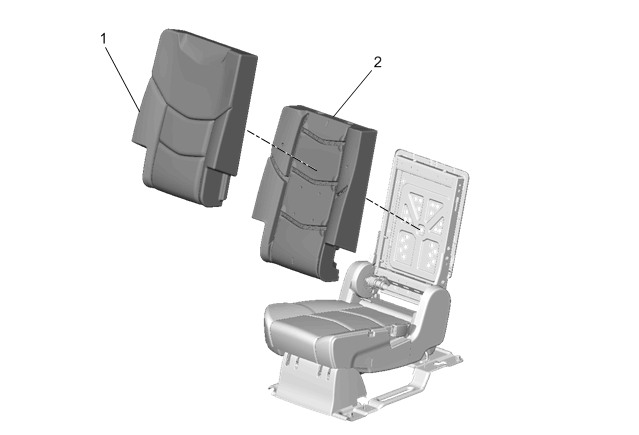

Fig 1: Rear Seat Back Cushion Cover, Pad And Components (60%)
GM4003956Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove rear seat. Refer to Rear Seat Removal and Installation (60/40 Bench)
  2. Remove rear seat head restraint guide. Refer to Rear Seat Head Restraint Guide Replacement
1 Rear Seat Back Cushion Cover

Procedure

  1. Disconnect the seat back cushion cover j-channel.
  2. Remove the four push in retainers holding the cover to the seat back frame.
  3. Disconnect the electrical connector if equipped with heated seat.
  4. Pull the seat back cushion cover away from the seat cushion pad to disengage the hook and loop fasteners.
2 Rear Seat Back Cushion Pad
