Front Seat Back Cushion Finish Panel Replacement

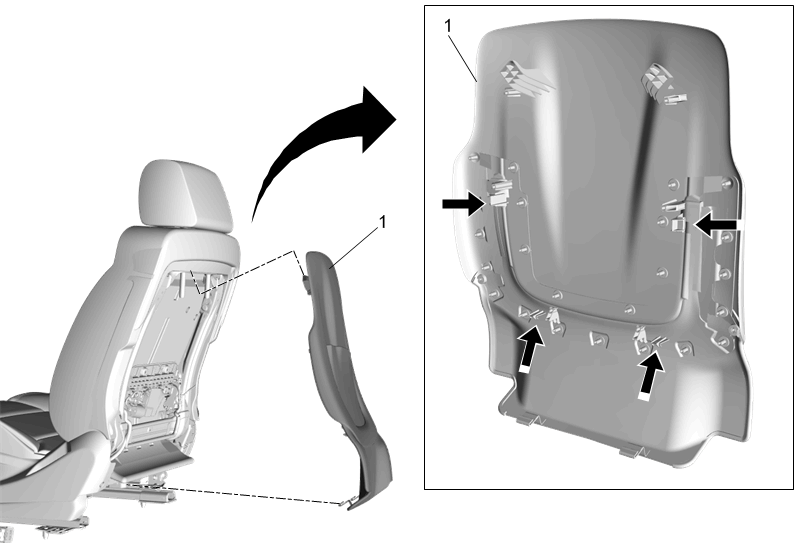

Fig 1: Front Seat Back Cushion Finish Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Back Cushion Finish Panel Procedure Detach the seat back cushion cover two bottom bungee and third center bungee clips from the crossbar, if equipped. Detach the lower (flexible) back panel hooks from the frame by reaching up inside the back panel from the bottom to locate the flat of the hooks. While pushing up on the flat of the hook, push inward in the area of the hook to release the hook from the frame. With the lower (flexible) hooks free, pull down on the back panel to disengage the upper (rigid) hooks. With the upper (rigid) and lower (flexible) hooks free, detach the side (flexible) hooks from the frame by pushing inward and towards the center of the seat, one side at a time.

Callout

Component Name

Front Seat Back Cushion Finish Panel

Procedure

Detach the seat back cushion cover two bottom bungee and third center bungee clips from the crossbar, if equipped.
Detach the lower (flexible) back panel hooks from the frame by reaching up inside the back panel from the bottom to locate the flat of the hooks. While pushing up on the flat of the hook, push inward in the area of the hook to release the hook from the frame.
With the lower (flexible) hooks free, pull down on the back panel to disengage the upper (rigid) hooks.
With the upper (rigid) and lower (flexible) hooks free, detach the side (flexible) hooks from the frame by pushing inward and towards the center of the seat, one side at a time.
