Liftgate Trim Finish Panel Pull Cup Replacement

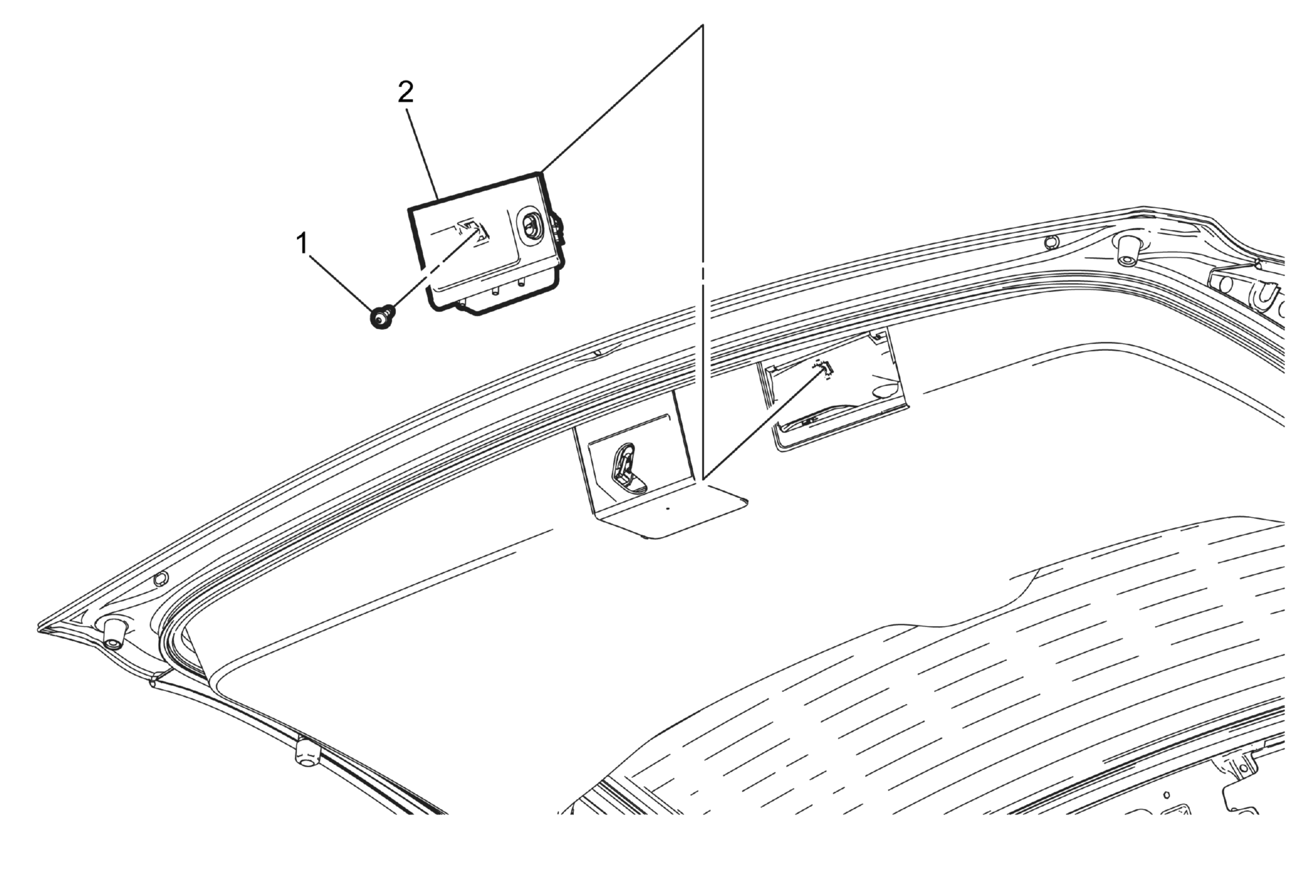

Fig 1: Liftgate Trim Finish Panel Pull Cup
GM3637265Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Lower Trim Finish Panel Fastener
CAUTION:

Refer to Fastener Caution .


Tighten 9 N.m (80 lb in)
2 Liftgate Trim Finish Panel Pull Cup

Procedure

  1. Use a plastic trim tool to aid in the removal.
  2. Disconnect electrical connector.
