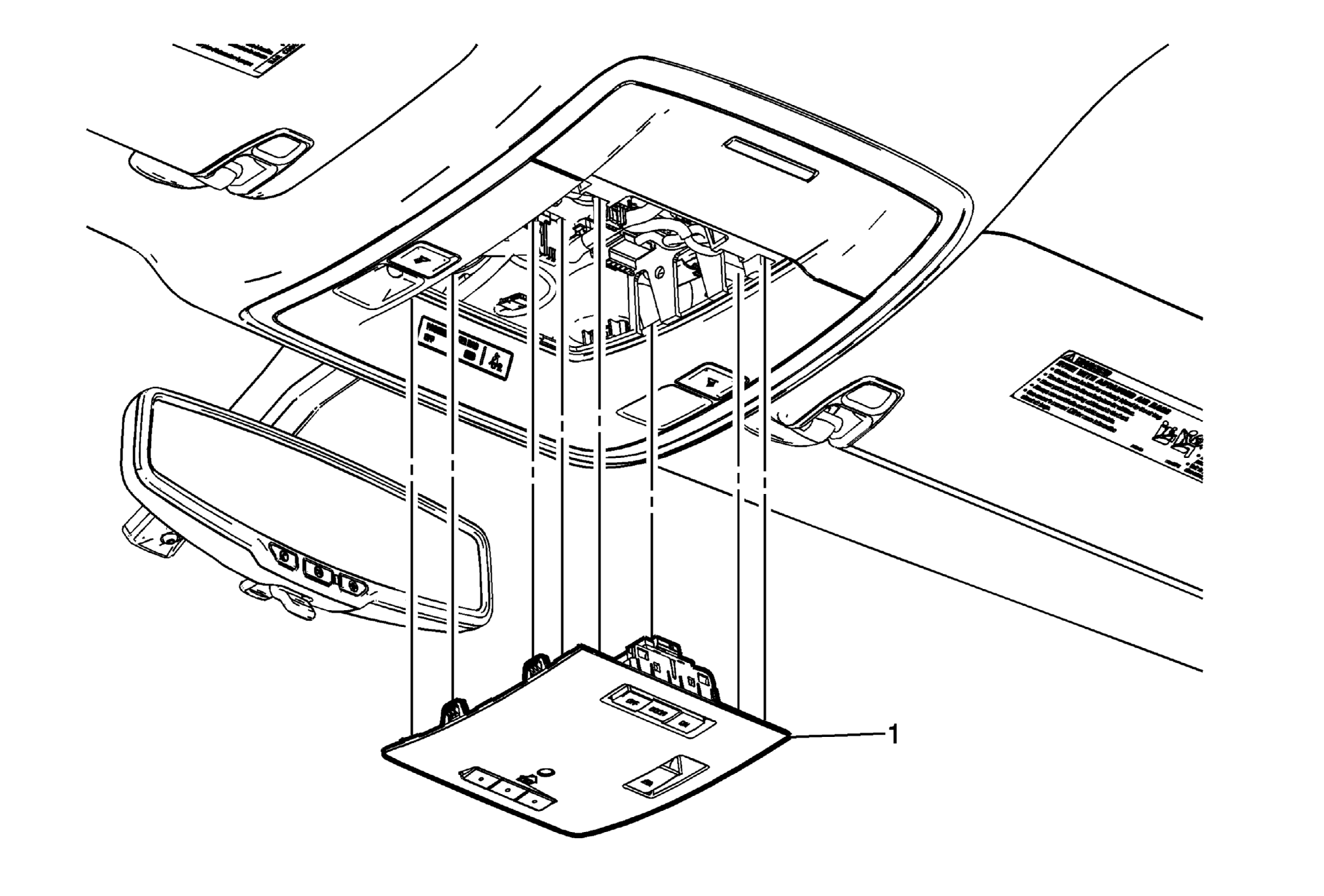

Roof Console Opening Trim Plate Procedure
- Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim plate to the roof console assembly.
- Disconnect the electrical connection.
- When replacing the trim plate, transfer all necessary components.
|
