Rear Seat Hinge Stud Finish Cover Replacement

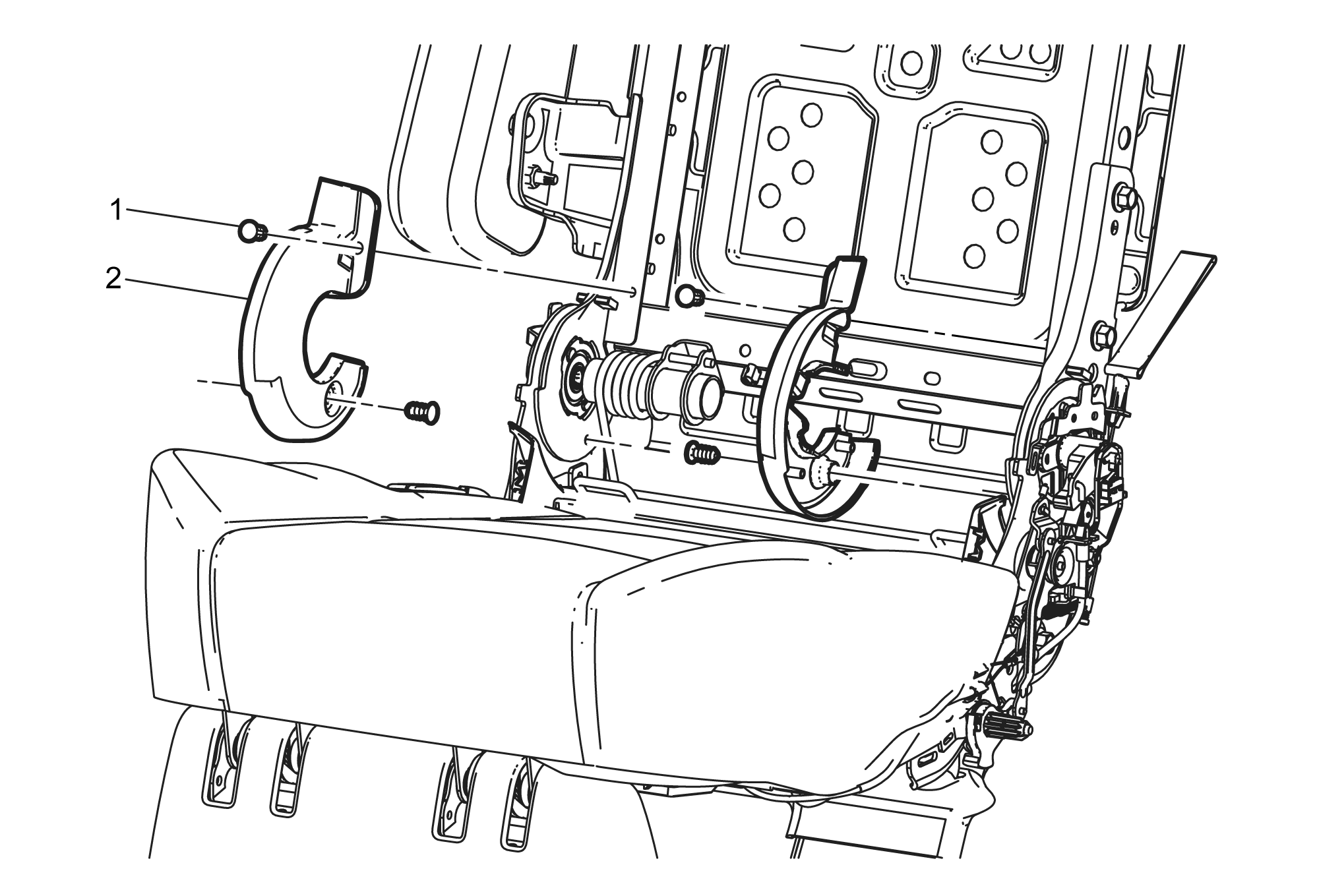

Fig 1: Rear Seat Hinge Stud Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Hinge Stud Finish Cover Retainer (Qty: 2) Procedure Disengage the seat back cushion cover j-channel from the seat back cushion frame. Pull upward slightly on the rear seat back cushion cover and pad to gain access to the retainers. NOTE: The seat back cushion cover and pad does not need to be removed for the removal of the hinge stud finish cover.
2	Rear Seat Hinge Stud Finish Cover CAUTION: Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Carefully pull forward to release the hinge stud finish cover from the seat assembly.

Callout

Component Name

Rear Seat Hinge Stud Finish Cover Retainer (Qty: 2)

Procedure

Disengage the seat back cushion cover j-channel from the seat back cushion frame.
Pull upward slightly on the rear seat back cushion cover and pad to gain access to the retainers.

NOTE:

The seat back cushion cover and pad does not need to be removed for the removal of the hinge stud finish cover.

Rear Seat Hinge Stud Finish Cover

CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure
Carefully pull forward to release the hinge stud finish cover from the seat assembly.
