Rear Seat Front Riser Finish Cover Replacement

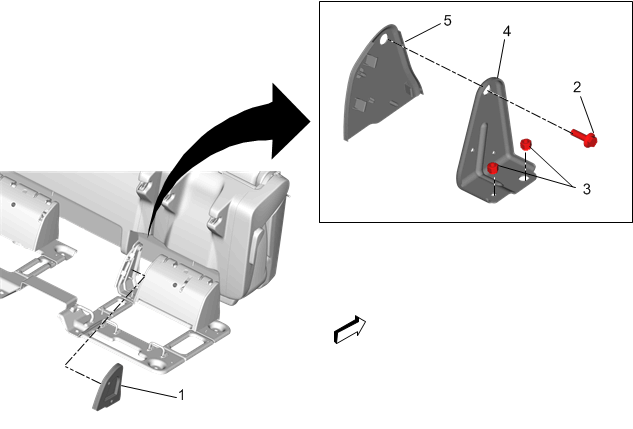

| Callout | Component Name |
|---|---|
| Preliminary Procedure Refer to Intermediate Floor Panel Carpet Replacement . |
|
| 1 | Rear Seat Front Riser Finish Cover (Inboard)
CAUTION:
Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Release the rear seat latch to fold up the seat and gain access to the finish cover fastener. |
| 2 | Rear Seat Back Latch Pivot Bolt
CAUTION:
Refer to Fastener Caution . Tighten 55 N.m (41 lb ft) |
| 3 | Rear Seat Assembly Nut (Qty: 2) Tighten 45 N.m (33 lb ft) |
| 4 | Rear Seat Bracket |
| 5 | Rear Seat Front Riser Finish Cover (Outboard)
CAUTION:
Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Carefully pull rearward to release the finish cover from the seat assembly. |
