Rear Seat Armrest Replacement (60/40 Bench)

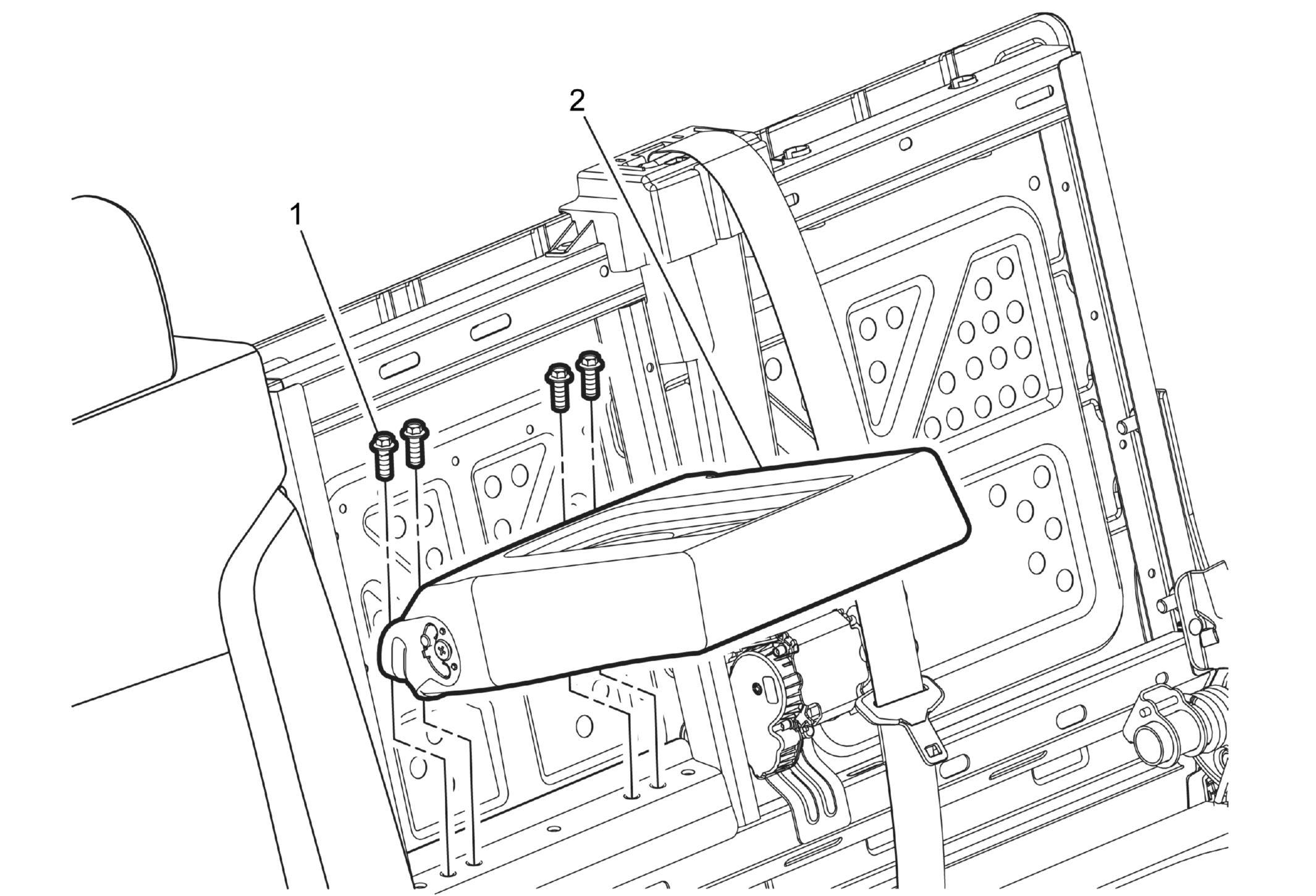

Fig 1: Rear Seat Armrest (60/40 Bench)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear seat armrest support finish cover. Refer to Rear Seat Armrest Support Finish Cover Replacement .
1	Rear Seat Armrest Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Rear Seat Armrest
