Front Seat Outer Recliner Finish Cover Bracket Replacement

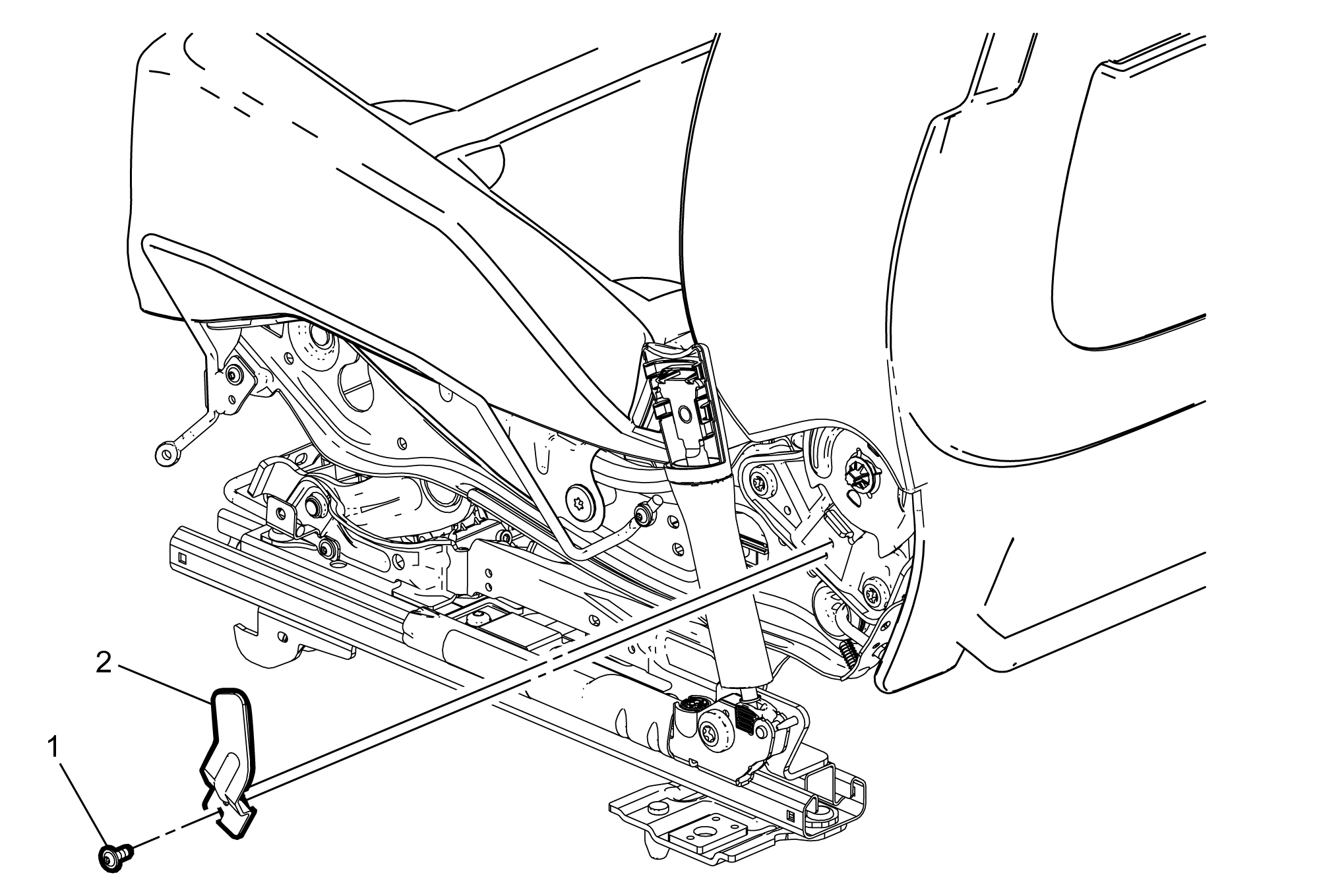

Fig 1: Front Seat Outer Recliner Finish Cover Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat cushion outer finish cover. Refer to Front Seat Cushion Outer Finish Cover Replacement (8-Way Power) Front Seat Cushion Outer Finish Cover Replacement (2-Way Manual) Front Seat Cushion Outer Finish Cover Replacement (22-Way Power) .
1	Front Seat Outer Recliner Finish Cover Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Seat Outer Recliner Finish Cover Bracket
