Front Seat Cushion Pad Support Replacement (22-Way Power)

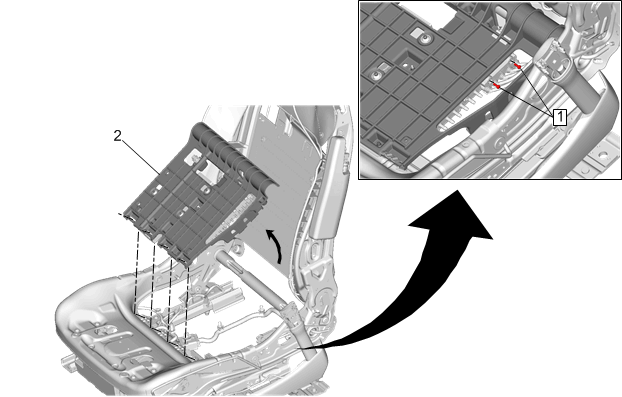

Fig 1: Front Seat Cushion Pad Support (22-Way Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement Remove Driver or Passenger Seat Back Cover and Pad (22-Way Power). Refer to Driver or Passenger Seat Back Cover and Pad Replacement (22-Way Power)
1	Front Seat Lumbar Support Bladder Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 0.6 N.m (6 lb in)
2	Front Seat Cushion Pad Support Procedure Disconnect the electrical connector. Transfer components as necessary. Refer to Control Module References for programming and set up information, if required.

Callout

Component Name

WARNING:

Preliminary Procedures

Remove Front Seat Cushion Cover and Pad. Refer to Front Seat Cushion Cover and Pad Replacement
Remove Driver or Passenger Seat Back Cover and Pad (22-Way Power). Refer to Driver or Passenger Seat Back Cover and Pad Replacement (22-Way Power)

Front Seat Lumbar Support Bladder Bolt (Qty: 2)

CAUTION:

Tighten
0.6 N.m (6 lb in)

Front Seat Cushion Pad Support

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Refer to Control Module References for programming and set up information, if required.
