Front Seat Cushion Center Stowage Compartment Lock Cylinder Replacement

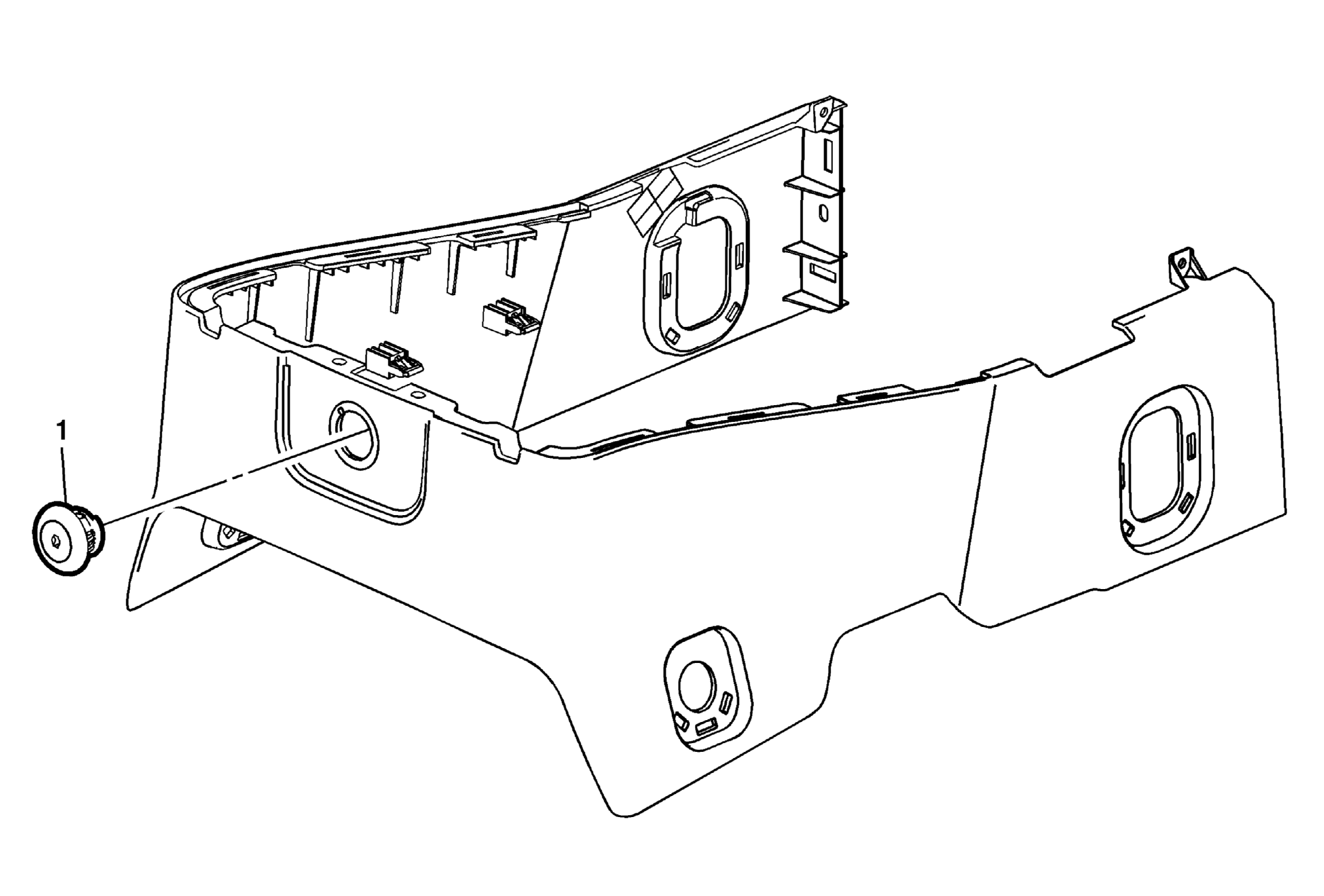

Fig 1: Front Seat Cushion Center Stowage Compartment Lock Cylinder Case
GM3272519Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat cushion center cover. Refer to Front Seat Cushion Center Cover Replacement .
1 Front Seat Cushion Center Stowage Compartment Lock Cylinder Case

Procedure

  1. Use a flat-bladed tool to release the lock clamp from the lock cylinder assembly.
  2. Remove the lock cylinder by sliding it forward through the front seat cushion center cover.
